Hydrostatic Pressure in Liquids
Product Code : JA-FMAHLE-9987

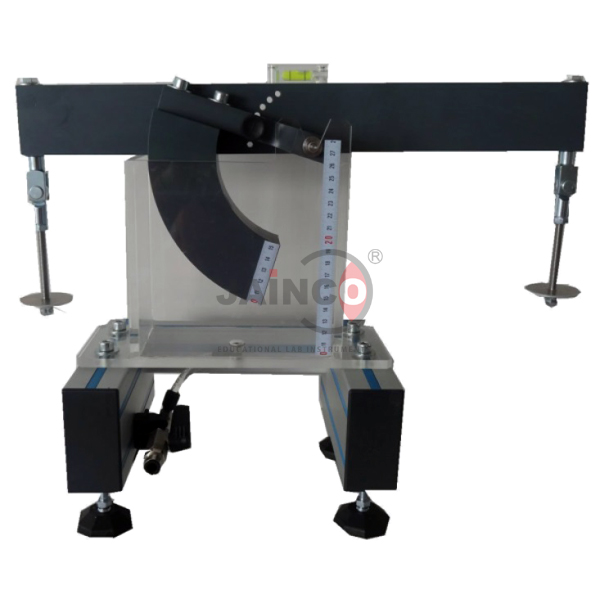

The Hydrostatic Pressure in Liquids apparatus (SKU JA-FMAHLE-9987), supplied by JaincoLab, investigates the pressure in a fluid at rest and the force it exerts on a submerged surface. A water tank with a fill-level scale can be tilted from 0 to 90°, and the hydrostatic force on its test surface is balanced with weights on a lever arm. This hydrostatic pressure apparatus lets students find the resultant force and centre of pressure for vertical and inclined surfaces.
Specifications
The hydrostatic pressure apparatus is specified by a tank tiltable from 0 to 90° holding up to 1.8 L, an effective area of up to 75 x 100 mm, a level scale of 0 to 250 mm and a lever arm of up to 250 mm with weights.
| Product | Hydrostatic Pressure in Liquids |
| SKU | JA-FMAHLE-9987 |
| Water tank | Tiltable, 0 - 90°; content 0 - 1.8 L |
| Effective area | Max. 75 x 100 mm |
| Level scale | 0 - 250 mm |
| Lever arm | Max. length 250 mm |
| Weights | Different weights supplied |
Experiments with the hydrostatic pressure apparatus
The apparatus is used to show that hydrostatic pressure rises linearly with depth and to find the size and position of the resultant force on a submerged plane at different angles.
- Hydrostatic pressure in fluids at rest
- Resultant force on a submerged plane surface
- Centre of pressure at different tank angles
- Comparison of measured and calculated moments
Scope of supply and ordering
The listing covers the Hydrostatic Pressure in Liquids apparatus with tiltable tank, lever arm and weights. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single trainers and complete fluid mechanics laboratories for engineering colleges, polytechnics and TVET institutes, including tender orders, are supplied.
Frequently asked questions
How far can the tank be tilted?
From 0° to 90°.
What is the tank capacity?
Up to 1.8 litres, with a fill-level scale of 0 to 250 mm.
How is the force measured?
By balancing it with weights on a lever arm of up to 250 mm.
