Friction Losses in Pipe Elements
Product Code : JA-FMAHLE-10007

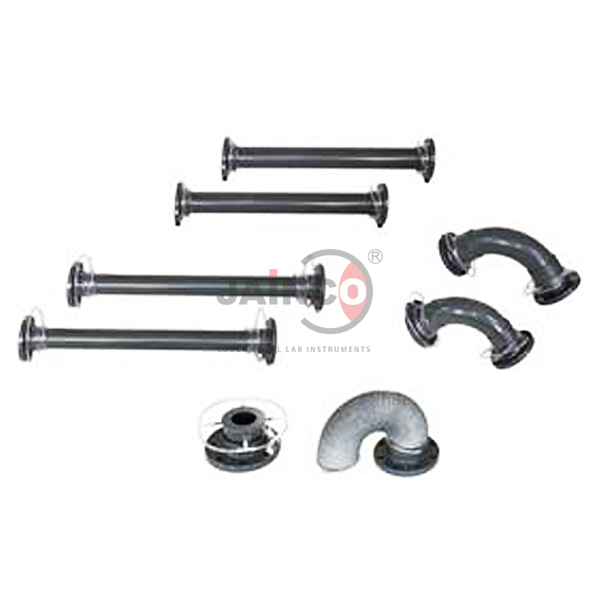

The Friction Losses in Pipe Elements set (SKU JA-FMAHLE-10007), supplied by JaincoLab, is used to investigate the pressure losses caused by straight pipes and fittings in an air flow. Pipe sections, a 90° angle, a 90° bend and a sudden enlargement can be combined in different arrangements, and two interchangeable inlets give either a sudden enlargement or an uninterrupted entry. This pipe friction set has measuring points for pressure along the straight sections and for velocity at the inlets.
Specifications
The pipe friction set is specified by straight pipe sections of 53.6 mm inner diameter (1235 mm with flange and 991 mm), a 90° angle and a 90° bend with radius 2d, a sudden enlargement from 35 to 53.6 mm and an uninterrupted inlet of 22 mm radius. The air supply it connects to is confirmed on the quotation.
| Product | Friction Losses in Pipe Elements |
| SKU | JA-FMAHLE-10007 |
| Straight pipe with flange | ID 53.6 mm, length 1235 mm |
| Straight pipe section | Length 991 mm |
| 90° pipe angle | ID 53.6 mm |
| 90° pipe bend | ID 53.6 mm, radius 2 x d |
| Sudden enlargement | d = 35 to 53.6 mm |
| Uninterrupted air inlet | Radius 22 mm |
| Measuring points | Pressure on straight sections; velocity at pipe inlets |
Experiments with the pipe friction set
The set is used to measure how much pressure is lost in straight pipes and in each fitting at different air velocities, and to compare the loss coefficients of the elements.
- Friction loss in straight pipe sections
- Loss coefficients of a 90° angle and a 90° bend
- Loss at a sudden enlargement and at the inlet
- Combining pipe elements into different layouts
Scope of supply and ordering
The listing covers the Friction Losses in Pipe Elements set with pipes, fittings and inlets. The air-flow unit, pressure sensors and software used with it are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single trainers and complete fluid mechanics laboratories for engineering colleges, polytechnics and TVET institutes, including tender orders, are supplied.
Frequently asked questions
Which elements are included?
Straight pipes, a 90° angle, a 90° bend, a sudden enlargement and two interchangeable inlets.
What is the pipe inner diameter?
53.6 mm for the straight pipes, angle and bend.
Does it work on its own?
No. It connects to an air-flow unit, which is confirmed on the quotation.
