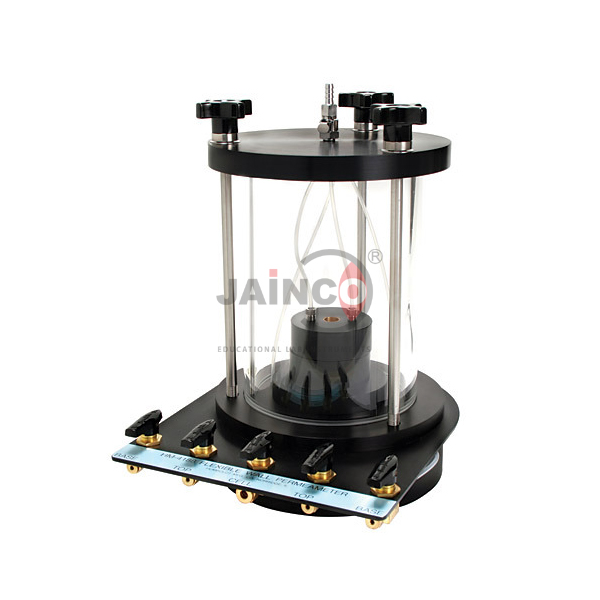

Permeability Test System
Product Code : JA-SM-8886
The permeability test system is for constant head permeability tests on incoherent soil samples in a 75 mm diameter cell. Water that has seeped through the sample leaves through three outlets in the central body to three manometer tubes of equal diameter, and a wall-mounted constant level tank is included (SKU JA-SM-8886).
Specifications
System parts as listed:
| Product | Permeability Test System |
| SKU | JA-SM-8886 |
| Cell diameter | 75 mm |
| Cell type | Type (b), for constant head tests on incoherent soils |
| Cell body | Transparent, 3 outlets to manometer tubes; water supply ducts, discharge and flow valves |
| Base | Metal, with inlet and drainage ducts |
| Sample surface | Movable stem stabilises the upper surface |
| Cell weight | 3 kg |
| Manometer stand | 3 glass tubes of equal diameter, graduated rods, taps, metal pedestal for bench mounting |
| Constant level tank | With support for wall mounting |
| Listed dimensions | 320 x 1450 x 500 mm |
Scope of supply and ordering
The system is supplied by JaincoLab as listed: the permeability cell, three-tube manometer stand and constant level tank. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What type of test is the cell designed for?
Constant head permeability tests on incoherent soil samples.
How many manometer tubes are there?
Three glass tubes of the same diameter, with graduated rods and taps, on a bench-mounted pedestal.
What is the cell diameter?
75 mm; the cell weighs 3 kg.
How is the sample surface kept stable?
A movable stem stabilises the upper surface of the sample in the cell.
Related products
Related items are grouped in the JaincoLab soil mechanics equipment range.
Request a quote
Send your requirement for the Permeability Test System to [email protected] or use the contact page. Buying under a laboratory tender? Use our tenders page.
