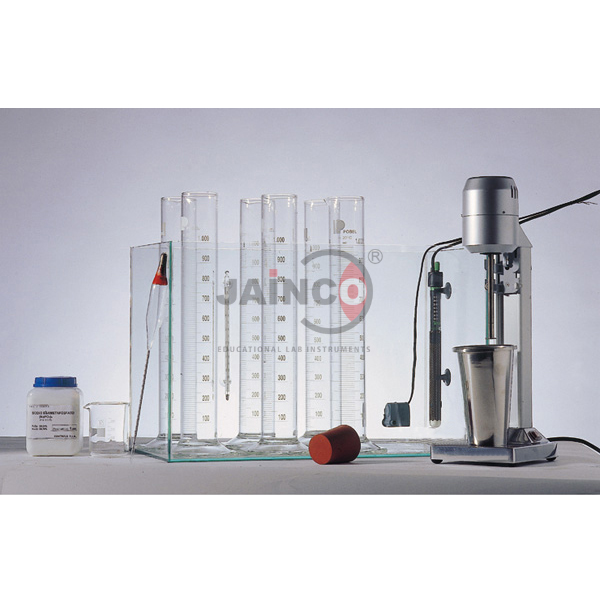

Particle Size Analysis Test Set
Product Code : JA-SM-8868
The particle size analysis test set is a constant-temperature water bath that holds 8 hydrometer jars for hydrometer analysis of soil particle size. A 700 W immersion heater in a stainless steel mixing chamber and a motor-driven circulating pump keep the bath between ambient and 60 °C, with a sensitivity of ±0.2 °C at 20 °C (SKU JA-SM-8868).
Specifications
Bath specification from the listing:
| Product | Particle Size Analysis Test Set |
| SKU | JA-SM-8868 |
| Capacity | 8 hydrometer jars |
| Heating | Immersion type, 700 W, in stainless steel mixing chamber |
| Temperature range | Ambient to 60 °C (140 °F) |
| Sensitivity | ±0.2 °C at 20 °C (68 °F) |
| Circulation | Drive pump with motor |
| Construction | Stainless steel tank, enamel finish exterior; stainless steel jar support grid |
| Plumbing ports | Overflow; drain; inflow and outflow for the cooling system |
| Inside dimensions | 959 x 197 x 419 mm |
| Outside dimensions | 1016 x 254 x 584 mm |
| Net weight | 36 kg |
| Supply | 110-230 V AC, 50/60 Hz |
Scope of supply and ordering
The listing covers the water bath with its jar support grid, heater and circulating pump, supplied by JaincoLab; the source does not list hydrometers or jars, so these are confirmed on the quotation. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
How many hydrometer jars does it hold?
Eight, on a stainless steel support grid.
What temperature control does it give?
Ambient to 60 °C, with a sensitivity of ±0.2 °C at 20 °C.
What supply voltage does it accept?
110 to 230 V AC, 50/60 Hz.
Related products
Browse the full soil mechanics equipment range for related items.
Request a quote
For a price on the Particle Size Analysis Test Set, share the quantity and destination via the contact page or email [email protected].
