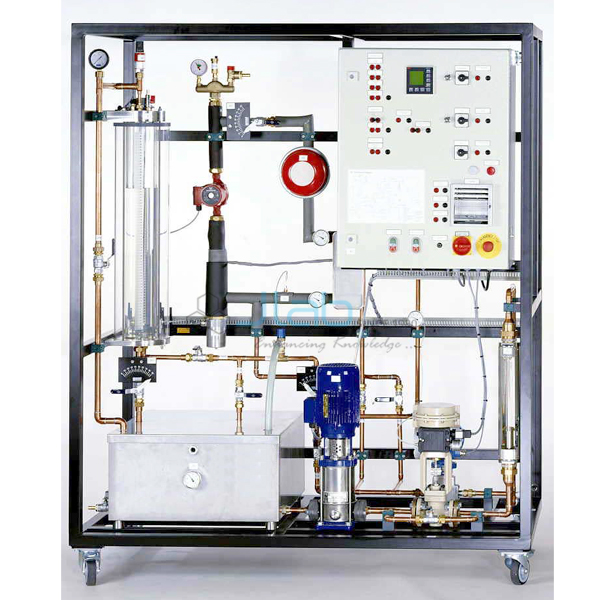

Multi-Process Control Trainer
Product Code : JA-AM-6476
The Multi-Process Control Trainer (SKU JA-AM-6476) is a control trainer built from industrial components that covers level, pressure, flow and temperature control on one unit. A transparent tank serves for level and pressure control, a pipe section for flow control, and a two-circuit system with a plate heat exchanger for temperature control. Either a pneumatic control valve or a speed-controlled pump can be the actuator, and a three-channel recorder logs the response. It is supplied by JaincoLab for instrumentation and control laboratories.
Specifications
The trainer has a transparent tank, a flow pipe section, a two-circuit plate heat exchanger system, a pneumatic control valve or speed-controlled pump as actuator, electronic sensors, a digital controller with wide parameter ranges and a three-channel recorder with current inputs.
| Product | Multi-Process Control Trainer |
| SKU | JA-AM-6476 |
| Loops | Level, pressure, flow and temperature |
| Level and pressure | Transparent tank |
| Temperature | Two-circuit system with plate heat exchanger |
| Actuators | Pneumatic control valve or speed-controlled pump |
| Controller | Digital, parameters adjustable over wide ranges |
| Sensors | Electronic sensors for each process value |
| Recording | Three-channel recorder with current inputs |
Experiments with the multi-process control trainer
Students switch between level, pressure, flow and temperature loops, choose valve or pump as actuator and record step and disturbance responses for different controller settings.
- Level and pressure control in a transparent tank
- Flow control with valve or variable-speed pump
- Temperature control with a plate heat exchanger
- Recording control behaviour over time
- Instrumentation and process control practicals
Scope of supply
This listing covers the multi-process control trainer with tank, pipe section, heat exchanger circuits, actuators, sensors, controller and recorder. Accessories, spares and quantities are confirmed on the quotation. Compressed air and power supply are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Multi-Process Control Trainer are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
Which process loops are included?
Level, pressure, flow and temperature control.
Which actuators can be used?
A pneumatically operated control valve or a speed-controlled pump.
How is the response recorded?
On a three-channel recorder with current inputs.
How do I request a price?
Share the SKU JA-AM-6476, the quantity and the delivery destination through the contact page or by email to [email protected].
