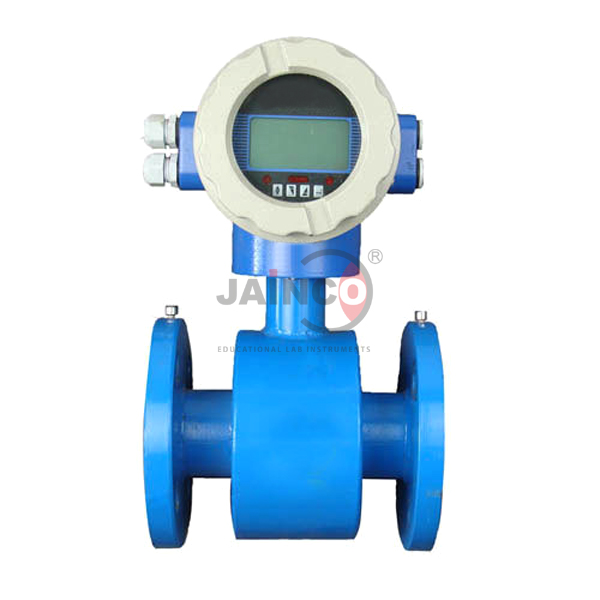

Electromagnetic Flow Meter
Product Code : JA-FMAHLE-10006
The Electromagnetic Flow Meter (SKU JA-FMAHLE-10006), supplied by JaincoLab, is an accessory for a fluid mechanics trainer that measures the flow of water using Faraday law of induction. A conductive liquid moving through a magnetic field induces a voltage proportional to its velocity, and the flow rate is shown on a display. This electromagnetic flow meter handles up to 4760 L/h, can be fitted vertically or horizontally and has connections for measuring its pressure loss.
Specifications
The electromagnetic flow meter is specified by a maximum flow rate of 4760 L/h and a 24 V DC auxiliary supply, with a flow display and pressure-loss connections. The trainer it connects to is confirmed on the quotation.
| Product | Electromagnetic Flow Meter |
| SKU | JA-FMAHLE-10006 |
| Principle | Faraday law of induction |
| Max. flow rate | 4760 L/h |
| Display | Flow rate display |
| Auxiliary power | 24 V DC |
| Connections | For pressure loss measurement and auxiliary power |
| Installation | Vertical or horizontal |
| Use | Accessory for a fluid mechanics trainer |
Experiments with the electromagnetic flow meter
The meter is used in flow measurement practicals to show a meter with no moving parts in the flow and to compare its reading and pressure loss with other meter types.
- Measuring volumetric flow of water
- Comparing electromagnetic, paddle wheel and differential-pressure meters
- Measuring the pressure loss across the meter
- Demonstrating the induction principle
Scope of supply and ordering
The listing covers the Electromagnetic Flow Meter accessory with display. The base trainer and power supply unit are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single trainers and complete fluid mechanics laboratories for engineering colleges, polytechnics and TVET institutes, including tender orders, are supplied.
Frequently asked questions
What is the maximum flow rate?
4760 litres per hour.
On what principle does it work?
Faraday law of induction, so there are no moving parts in the flow.
What power does it need?
A 24 V DC auxiliary supply from the trainer.
