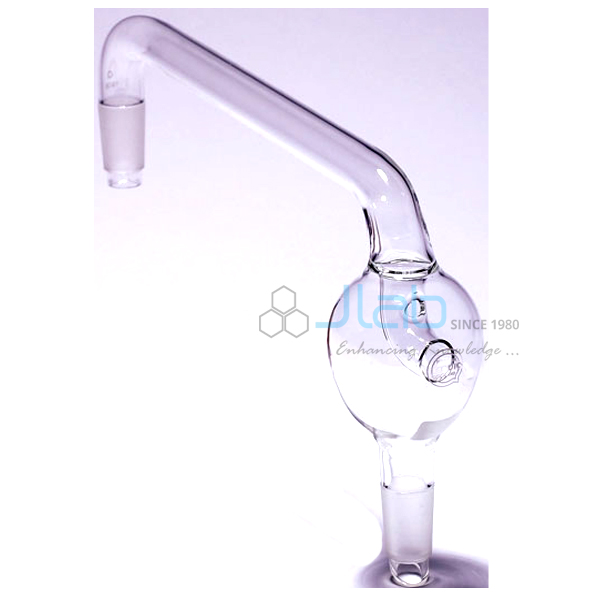

Distillation Heads - Splash, Vertical
Product Code : JA-D-1607
Distillation Heads - Splash, Vertical (product code JA-D-1607) are vertical splash heads for distillations where the condenser stands upright above or beside the flask. Like other splash heads, the vertical splash head traps droplets thrown up by the boiling liquid so they drain back instead of reaching the condenser. One cone fits the flask and one fits the condenser. Three combinations are listed, B19/B19, B24/B19 and B24/B24, for teaching and research laboratories.
Specifications
The vertical splash head has two ground-glass cones, one for the flask and one for the condenser, arranged for an upright condenser. Three combinations are listed, including B24/B19 for a B24 flask used with a B19 condenser.
| Product | Distillation Heads - Splash, Vertical |
| SKU / Product code | JA-D-1607 |
| Type | Splash head, vertical |
| Joints | Cone to fit flask, cone to fit condenser, B-series |
| Combinations listed (flask / condenser) | B19/B19, B24/B19, B24/B24 |
Applications of the vertical splash head
The vertical pattern is chosen when the distillation must fit a narrow space, such as a fume cupboard, and the flask contents are likely to spit or foam.
- Compact distillation assemblies in fume cupboards
- Distilling liquids that contain salts, solids or foaming residues
- Recovering solvent from crude plant or reaction extracts
- Pharmacy and B.Sc. distillation practicals
Scope of supply and ordering
The listing covers one vertical splash head in the combination you select: B19/B19, B24/B19 or B24/B24. Flasks, condensers, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for quantity and destination. JaincoLab supplies single laboratories, bulk requirements from colleges and institutes, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which combinations are listed?
B19/B19, B24/B19 and B24/B24, given as flask cone and condenser cone.
When should I choose vertical rather than sloping?
Choose vertical when the condenser stands upright and bench width is limited. The sloping version suits a condenser set at an angle.
Is there a splash head that fits between existing joints?
Yes. Distillation Heads - Splash Head, Adapter is listed in the same category.
