Distillation Heads
Product Code : JA-D-1604

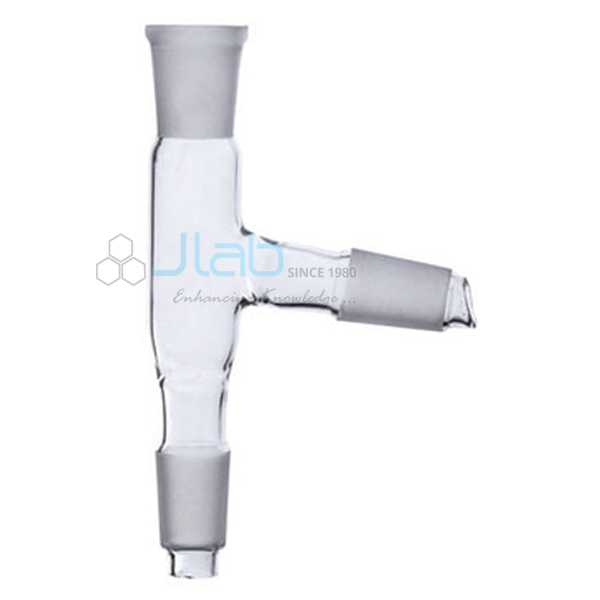

Distillation Heads (product code JA-D-1604) are the still heads that sit on top of a boiling flask in a jointed distillation set-up. A distillation head has a cone that fits the flask, a side arm ending in a cone that fits the condenser, and a socket at the top that takes a thermometer adapter so the vapour temperature can be read. Six combinations are listed, from the micro-scale B10 size to a B24 flask cone with a B24 condenser cone.
Specifications
Each head is defined by three joints: the cone to fit the flask, the cone to fit the condenser and the top socket. Six combinations are listed, including reducing versions such as B24 flask, B19 condenser and B14 socket.
| Product | Distillation Heads |
| SKU / Product code | JA-D-1604 |
| Type | Distillation head (still head) |
| Joints | Cone to fit flask, cone to fit condenser, top socket; B-series |
| Combinations listed (flask / condenser / socket) | B10/B10/B10, B14/B14/B14, B19/B19/B14, B19/B19/B19, B24/B19/B14, B24/B24/B14 |
Applications of the distillation head
The head connects the flask to the condenser and holds the thermometer at the point where vapour leaves for the condenser, which is where the boiling temperature is measured.
- Simple distillation in school, B.Sc. and pharmacy practicals
- Reading the boiling point of a distillate with a thermometer adapter
- Micro-scale distillation with the B10 and B14 sizes
- Linking a B24 flask to a B19 condenser in mixed-size sets
Scope of supply and ordering
The listing covers one distillation head in the joint combination you select from the six in the table. Thermometer adapters, condensers, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on the quotation for quantity and destination. JaincoLab supplies single laboratories, bulk school and college orders, and export consignments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which combinations are listed?
B10/B10/B10, B14/B14/B14, B19/B19/B14, B19/B19/B19, B24/B19/B14 and B24/B24/B14, given as flask cone, condenser cone and socket.
What is the top socket for?
It takes a thermometer adapter or stopper.
Is a Claisen head available?
Yes. Distillation Heads - Claisen, Sloping is listed in the same category.
