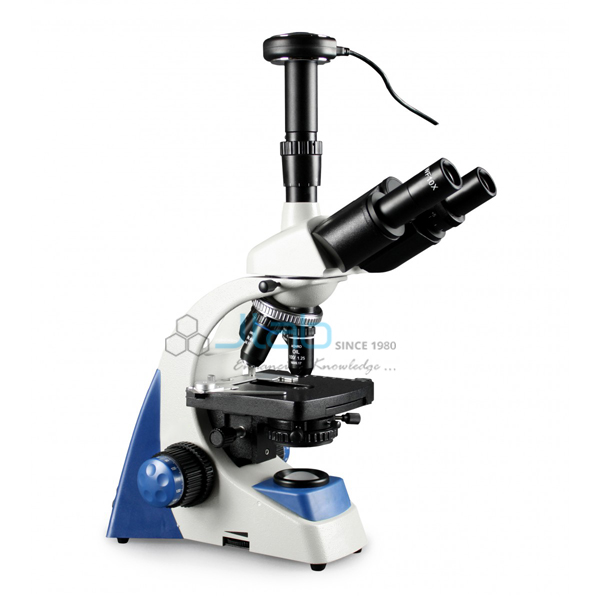

Digital Trinocular Microscope With LED Illumination Series 40X-1000X
Product Code : JA-M-8064
The Digital Trinocular Microscope With LED Illumination Series 40X-1000X (SKU JA-M-8064) is a Siedentopf trinocular microscope supplied by JaincoLab for senior school and college laboratories. Its C-mount port takes the 1.3 MP digital eyepiece camera through the included relay lens, so this digital trinocular microscope from 40x to 1000x can show the specimen on a computer over USB 2.0 while students observe through the eyepieces.
Specifications
Optical values and the camera data given in the listing are shown below.
| Product | Digital Trinocular Microscope With LED Illumination Series 40X-1000X |
| SKU | JA-M-8064 |
| Head | Siedentopf trinocular, inclined 30 degrees, rotates 360 degrees; interpupillary distance 54-76 mm |
| Eyepiece | WF10x with pointer |
| Trinocular port | C-mount; C-mount relay lens included |
| Objectives | DIN achromatic 4x, 10x, 40xS, 100xS (oil); parfocal, parcentred, colour-coded |
| Magnification | 40x, 100x, 400x, 1000x |
| Nosepiece | Reversed, ball-bearing, internal click stops |
| Condenser | 1.25 NA Abbe |
| Diaphragm | Iris diaphragm with swing-out filter holder |
| Focusing | Coaxial coarse and fine, gear movement, knobs low on the bracket |
| Stage | Double-layer built-in mechanical stage with stage clips and low control knob |
| Light source | LED with intensity control |
| Power | Listed as 110 V |
| Camera | 1.3 MP, max. 1280 x 1024; 30 fps at 640 x 480; 1/3 in CMOS; 1.0 V/lux-sec; white balance manual or auto; JPEG or BMP |
| Camera interface | USB 2.0; Windows XP, Vista, 7, 8, 10; imaging software included |
Uses of the digital trinocular microscope
- Showing live slide images to a class on a computer screen
- Recording JPEG or BMP images of slides at up to 1000x
- Senior school and college biology practicals
- Veterinary and medical teaching laboratories
Scope of supply and ordering
The listing covers the trinocular microscope with the 1.3 MP eyepiece camera, C-mount relay lens and imaging software. The mains voltage for the destination, quantity and delivery are confirmed on the quotation.
Frequently asked questions
How does the camera connect?
The 1.3 MP digital eyepiece camera fits the C-mount trinocular port through the included relay lens and connects to a computer by USB 2.0. The listing gives compatibility with Windows XP, Vista, 7, 8 and 10.
What does the trinocular head adjust for?
It is inclined at 30 degrees, rotates through 360 degrees and adjusts for interpupillary distances from 54 to 76 mm.
Which mains supply is listed?
The source lists 110 V. The supply version for the destination is confirmed on the quotation.
