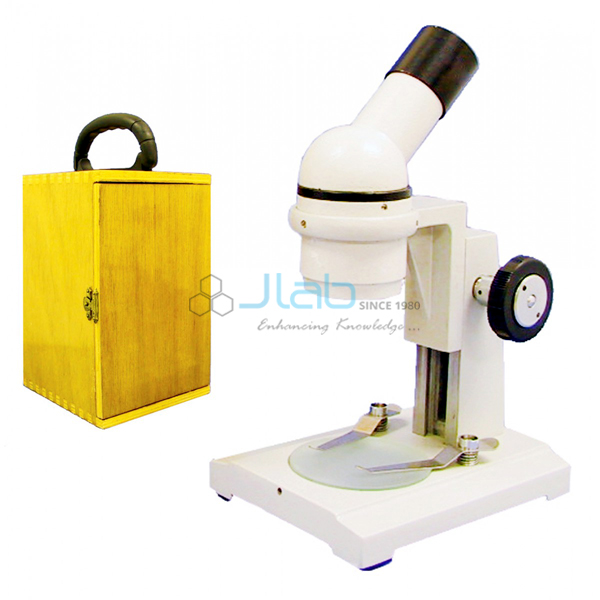

Field Trip Microscope with Wooden Carrying Case
Product Code : JA-M-8039
The Field Trip Microscope with Wooden Carrying Case (SKU JA-M-8039) is a low-power dissecting-type microscope supplied by JaincoLab for use indoors and outdoors. A locked-on WF10x eyepiece with a 2x objective gives 20x with an upright image, and ambient light reflected from the stage plate replaces any lamp, so no batteries are needed. It has an all-metal frame and packs into a wooden case, making this field trip microscope easy to carry to a pond, garden or rock site.
Specifications
The listing gives a monocular head inclined at 45 degrees, a locked-on WF10x eyepiece with glass optics, a 2x objective for 20x, rack and pinion coarse focusing with slip clutch and tension wrench, a 5.5 cm working distance, a 9 x 12 cm stage with 5.5 cm glass plate and ambient-light illumination.
| Product | Field Trip Microscope with Wooden Carrying Case |
| SKU | JA-M-8039 |
| Head | Monocular, inclined at 45 degrees |
| Eyepiece | Locked-on WF10x, glass optics |
| Objective | 2x (total 20x) |
| Focusing | Rack and pinion coarse focus, slip clutch, tension adjusted with included wrench |
| Working distance | 5.5 cm |
| Stage | 9 x 12 cm with 5.5 cm glass plate; spring-loaded clips |
| Illumination | Ambient light reflected from the stage plate; no batteries |
| Case | Wooden carrying case 8.5 x 6 x 5.5 in; all-metal microscope frame |
Applications of the field trip microscope
It is taken on nature walks and field visits to look at insects, pond water, plants and rocks where they are found, with no power needed, and is also used in junior classrooms for the same specimens.
- Insects and small animals on field visits
- Pond water samples at the pond edge
- Leaves, flowers and seeds
- Rocks and soil
- Junior class observation
Scope of supply and ordering
One unit is one field trip microscope with the wooden carrying case and focus tension wrench. Spares and quantities are confirmed on the quotation.
Each quotation states the minimum order quantity, the lead time and the packing for the quantity requested and the destination. JaincoLab handles bulk school and college orders and tender supplies, and ships to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Does it need batteries?
No. It uses ambient light reflected from the stage plate.
What magnification does it give?
20x, from the locked-on WF10x eyepiece and the 2x objective.
Is a carrying case included?
Yes, a wooden carrying case of 8.5 x 6 x 5.5 in is included.
