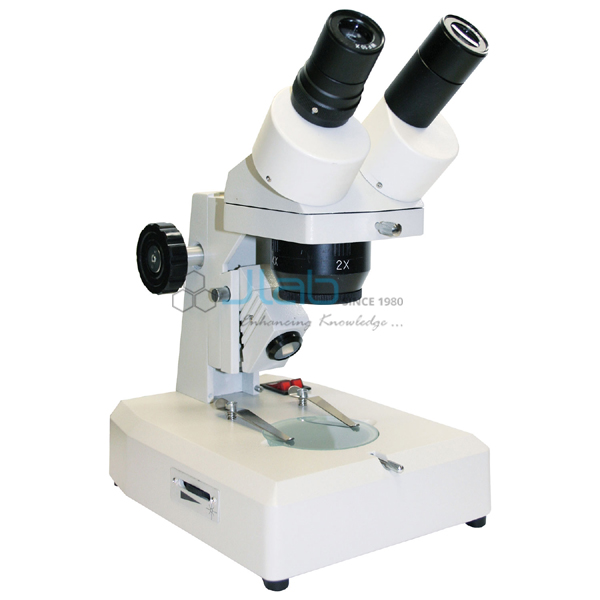

Dual Power Binocular Stereo Microscope 1X and 2X Objective
Product Code : JA-M-8114
The Dual Power Binocular Stereo Microscope 1X and 2X Objective (SKU JA-M-8114) is the lowest-power model in the dual power stereo series supplied by JaincoLab. Its 1x and 2x objectives give 10x and 20x with the WF10x pair, a wide view for whole specimens, with an 80 mm working distance and 3-way LED light for dissection and mineral work.
Specifications
Values listed for the 1x/2x model are set out below.
| Product | Dual Power Binocular Stereo Microscope 1X and 2X Objective |
| SKU | JA-M-8114 |
| Magnification | 10x and 20x; 15x and 30x with optional WF15x; 20x and 40x with optional WF20x |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; IPD 55-75 mm |
| Eyepieces | Paired WF10x; diopter on left tube; rubber eyeshields |
| Objectives | 1x and 2x on a turret |
| Working distance | 80 mm |
| Illumination | 3-way LED: transmitted, incident or both, intensity control |
| Power | Listed as 110 V |
| Stage | Reversible black/white plate and frosted plate; lock-on clips |
| Body | Cast aluminium, grey enamel |
| Packing | Fitted foam box, dust cover, instruction manual |
Uses of the 10x and 20x stereo microscope
- Whole insects, flowers and seeds where a wide field is needed
- Dissection with instruments at 10x
- Surface study of rocks and minerals
- Translucent specimens over the transmitted light
Scope of supply and ordering
Each unit ships in a fitted foam box with the WF10x pair, stage plates, dust cover and manual. Optional eyepieces, supply voltage, quantities and delivery are confirmed on the quotation.
Frequently asked questions
What range do the optional eyepieces give?
With the 1x and 2x objectives, WF15x eyepieces give 15x and 30x and WF20x eyepieces give 20x and 40x.
How does it differ from the 1X and 3X objective model?
It uses a 2x instead of a 3x objective, so the higher setting is 20x rather than 30x; working distance, head and lighting are listed the same.
Related products
- Dual Power Binocular Stereo Microscope 1X and 3X Objective
- Dual Power Binocular Stereo Microscope 2X and 4X Objectives
- Dual Power Binocular Stereo Microscope Track Stand 1X and 2X Objective
- Dual Power Binocular Stereo Microscope
All stereo options are listed in the microscope range.
Request a quote
For a quotation on the Dual Power Binocular Stereo Microscope 1X and 2X Objective, send the quantity and destination via the contact page. Buying under a laboratory tender? Use our tenders page.
