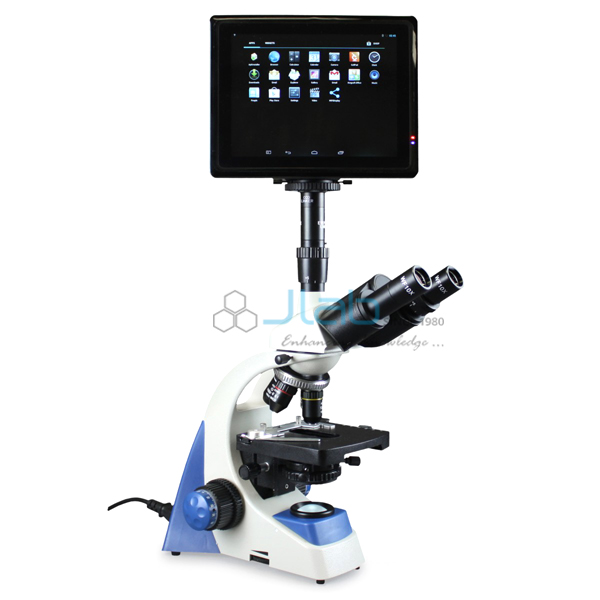

Trinocular Microscope with LED Illumination Series 40X-1000X
Product Code : JA-M-8066
The Trinocular Microscope with LED Illumination Series 40X-1000X (SKU JA-M-8066) is a trinocular LED microscope supplied by JaincoLab for senior school, college, veterinary and medical teaching laboratories. Its C-mount port carries an 8 in LCD touchscreen with a 2.0 MP camera through the included relay lens, and DIN achromatic objectives with WF10x eyepieces give four magnifications from 40x to 1000x.
Specifications
The microscope values and the touchscreen camera data from the listing are set out below.
| Product | Trinocular Microscope with LED Illumination Series 40X-1000X |
| SKU | JA-M-8066 |
| Head | Trinocular, inclined 30 degrees, rotates 360 degrees; interpupillary distance 54-76 mm |
| Eyepiece | WF10x with pointer |
| Trinocular port | C-mount; C-mount relay lens included |
| Objectives | DIN achromatic 4x, 10x, 40xS, 100xS (oil) |
| Magnification | 40x, 100x, 400x, 1000x |
| Nosepiece | Reversed, ball-bearing, click stops |
| Condenser | 1.25 NA Abbe |
| Diaphragm | Iris diaphragm with swing-out filter holder |
| Focusing | Coaxial coarse and fine, gear movement, knobs low on the bracket |
| Stage | Double-layer built-in mechanical stage with stage clips |
| Light source | LED with intensity control |
| Power | Listed as 110 V |
| Touchscreen camera | 8 in LCD touchscreen; 2.0 MP camera; dual core 1.41 GHz CPU; Android 4.1.1 |
| Image format | JPEG, BMP, TIFF, RAW |
| Outputs | USB 2.0; Wi-Fi, Bluetooth, HDMI or Mini SD card; Windows XP to 10, Mac and Linux compatible |
Uses of the trinocular LED microscope
- Showing the live specimen on the touchscreen to a small group
- Sending images to a projector or display over HDMI
- Saving slide images to a Mini SD card for practical records
- College, veterinary and medical teaching slide work up to 1000x
Scope of supply and ordering
The listing pairs the trinocular microscope with the 8 in touchscreen camera and C-mount relay lens. What is included, the mains voltage for the destination, quantities and delivery are set out on the quotation.
Frequently asked questions
Which image outputs does the touchscreen camera offer?
The listing gives USB 2.0 plus picture output by Wi-Fi, Bluetooth, HDMI or a Mini SD card, with images saved as JPEG, BMP, TIFF or RAW.
How is the touchscreen camera attached?
The 8 in LCD touchscreen with its 2.0 MP camera mounts on the C-mount trinocular port through the included C-mount relay lens.
How does it differ from the Digital Trinocular Microscope With LED Illumination Series?
Both list the same optics. This model is paired with the 8 in touchscreen and 2.0 MP camera, while the other uses a 1.3 MP USB eyepiece camera.
