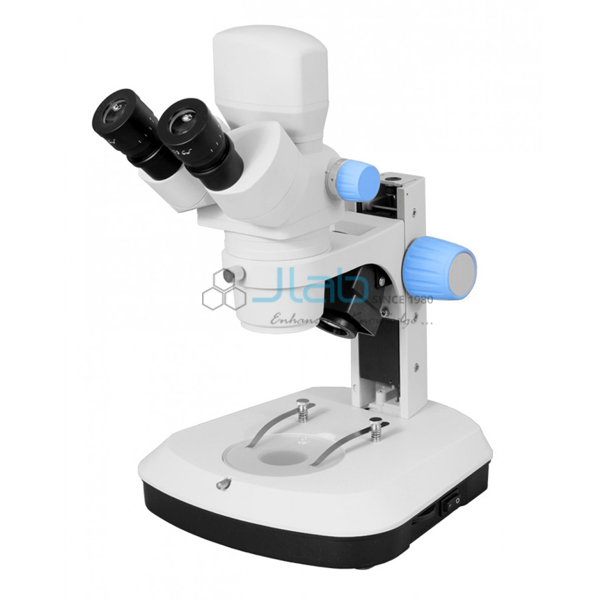

Super Widefield Digital Zoom Stereo Microscope
Product Code : JA-M-8125
The Super Widefield Digital Zoom Stereo Microscope (SKU JA-M-8125) is a zoom stereo microscope supplied by JaincoLab with a built-in 5.0 MP digital camera, so the specimen can be viewed through WF10x/23 mm eyepieces and captured over USB 2.0. Its 0.66x to 5x zoom body gives 6.6x to 50x at a 110 mm working distance, and optional auxiliary objectives and eyepieces widen the range to 3.3x to 200x.
Specifications
The listing gives the following optical, lighting and camera values.
| Product | Super Widefield Digital Zoom Stereo Microscope |
| SKU | JA-M-8125 |
| Magnification | 6.6x-50x standard; 3.3x-200x with auxiliary objectives and optional eyepieces |
| Zoom body | 0.66x-5x, zoom ratio 1:7.6, parfocal; graduated zoom knobs on both sides |
| Working distance | 110 mm; 36-189 mm with auxiliary objectives |
| Head | Binocular digital, inclined 45 degrees, rotates 360 degrees; IPD 54-76 mm; trinocular 20/80 head available |
| Eyepieces | Paired WF10x/23 mm high eyepoint; diopter +/-5 on both; eyeshades; lockable with setscrews |
| Focusing | Heavy-duty rack and pinion with slip clutch; two knobs with tension; 140 mm focus range |
| Stage | 99.5 mm glass plate and 99.5 mm reversible black/white plate; spring-mounted clips |
| Illumination | 3 W LED top (diagonally adjustable) and 3 W LED bottom, each dimmable; transmitted, incident or both |
| Camera | Built-in, 5.0 MP, 1/2 in colour CMOS; USB 2.0, no external power; imaging software for Windows 2000, XP, Vista, 7 |
| Optional, not included | Auxiliary objectives 0.5x (WD 189 mm, 3.3x-25x) and 2.0x (WD 36 mm, 13.2x-100x); WF20x/12 mm and reticle eyepieces; 2D travelling stage |
Uses of the digital zoom stereo microscope
- Capturing images of whole specimens and dissections on a computer
- Continuous zoom from overview to detail without changing objectives
- Inspection of small components and fine surfaces
- Wider fields of view with the optional 0.5x auxiliary objective
Scope of supply and ordering
The listing covers the zoom stereo microscope with its built-in camera, software, WF10x/23 pair and both stage plates. Auxiliary objectives, the trinocular head option, quantities and delivery are itemised on the quotation.
Frequently asked questions
What field of view does it give?
With the standard 1x setting and WF10x eyepieces the field diameter runs from 34.8 mm at 6.6x down to 4.6 mm at 50x.
Does the camera need its own power supply?
No. The built-in 5.0 MP camera connects and draws power through USB 2.0.
How can the magnification range be extended?
A 0.5x auxiliary objective gives 3.3x-25x at 189 mm working distance, and a 2.0x objective gives 13.2x-100x at 36 mm; WF20x eyepieces double these values.
