LAN Trainer
Product Code : JA-CT-1512

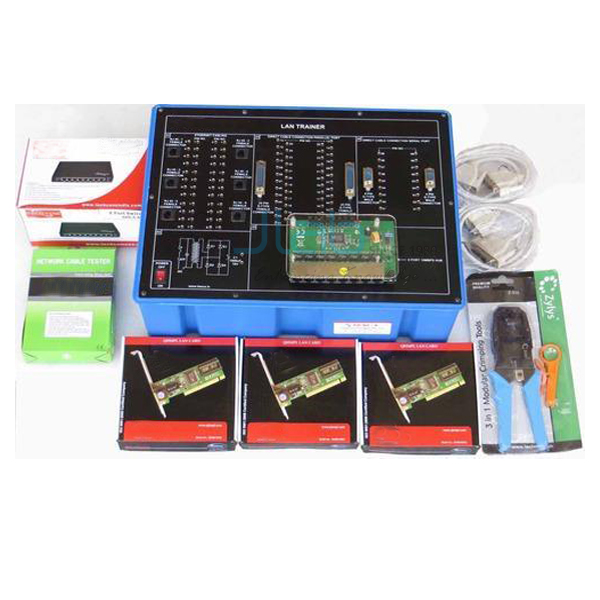

The LAN trainer is used to study local area networking hardware and cabling. It has three on-board Ethernet cabling set-ups, parallel and serial port direct-cable set-ups, an on-board 10 Mbps hub with its circuitry and power supply exposed, and a separate hub for multi-hub networking, with three 10/100 Mbps Ethernet cards, cables, a cable fabrication kit and four manuals (SKU JA-CT-1512).
Specifications
LAN hardware listed with the trainer:
| Product | LAN Trainer |
| SKU | JA-CT-1512 |
| On-board set-ups | Three Ethernet cabling set-ups; parallel port direct cable; serial port direct cable |
| Hub | 10 Mbps on board with exposed circuitry and its power supply; separate hub for multi-hub networking |
| Ethernet cards | 10/100 Mbps, 3 |
| UTP straight cables with connectors | 5 m x 3 and 0.5 m x 3 |
| Coaxial cable | 10 m, with connectors and termination |
| Parallel port cables | Straight, 2 |
| Serial port cables | Straight, 2 |
| Hubs supplied | 10 Mbps, 8 port, 2 |
| Other items | Cable fabrication kit; patch cords for the on-board cabling; set of 4 manuals (LAN hardware and cabling, software configuration, protocols, terms and definitions) |
Scope of supply and ordering
The listing covers the LAN trainer with the cards, cables, hubs, cable fabrication kit and manuals listed above, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
What networking can be practised on the LAN trainer?
Ethernet cabling, parallel and serial port direct-cable connections, and single-hub and multi-hub networking.
How many Ethernet cards and hubs are supplied?
Three 10/100 Mbps Ethernet cards and two 10 Mbps 8-port hubs are listed.
Can students make their own cables?
Yes. A cable fabrication kit is supplied for hands-on cabling.
