CNC Lathe Controller
Product Code : JA-CTM-9031

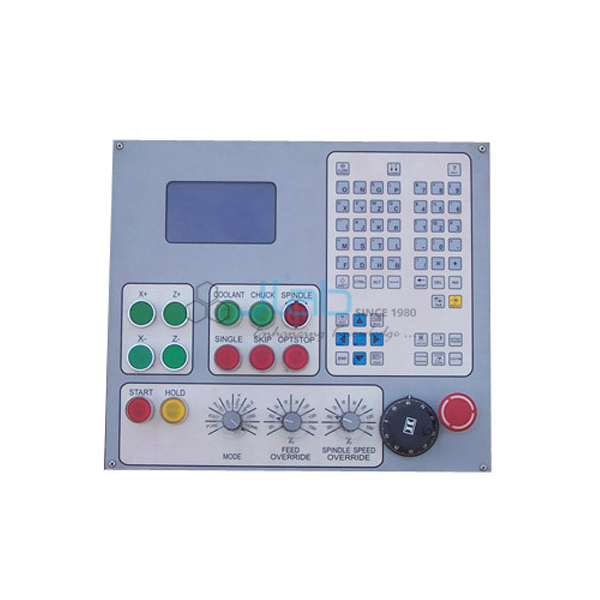

The CNC Lathe Controller (SKU JA-CTM-9031) is a CNC lathe controller that combines the controller and the machine operator panel (MOP) in one box, complete with push buttons, selector switches and a manual pulse generator (MPG). It controls 2.5 axes with two-axis linear and circular interpolation and runs standard G and M code programs. Colleges and workshops use it to retrofit lathes and to teach CNC turning control. JaincoLab manufactures it as a cost-effective complete control unit.
Specifications
The controller provides 2.5 axes with 2-axis linear and circular interpolation, clock and direction outputs, 16 digital inputs and 16 digital outputs, a 0-10 V analogue spindle output and spindle encoder feedback, on a 24 V DC supply.
| Product | CNC Lathe Controller |
| SKU | JA-CTM-9031 |
| Number of axes | 2.5 |
| Interpolation | 2-axis linear and circular |
| Spindle speed control | 0-10 V analogue output |
| Spindle encoder feedback | 1 axis |
| Step resolution | Full, half, quarter or one-eighth |
| Digital inputs | 16 |
| Digital outputs | 16 |
| Control output | Clock and direction |
| Programming | Standard G and M code |
| Operator controls | Push buttons, selector switches and MPG |
| Construction | Controller and machine operator panel (MOP) in one box |
| Power supply | 24 V DC |
| Terminations | D-sub connectors and FRC headers |
Applications of the CNC lathe controller
The unit gives a lathe everything needed for CNC operation from one box, so it suits both retrofits and teaching rigs for CNC control.
- Retrofitting manual lathes to CNC in college and polytechnic workshops
- Teaching G and M code programming on a lathe
- Practicals on stepper and servo drive control with clock and direction signals
- Building CNC turning trainers and project rigs
Scope of supply and ordering
The listing covers the CNC lathe controller with built-in machine operator panel, push buttons, selector switches and MPG. Motors, drives, encoder and cabling are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of controllers and any motors or drives and the delivery destination. Single units and multi-unit orders for workshops, training centres and tenders are supplied.
Frequently asked questions
How many axes does it control?
2.5 axes, with two-axis linear and circular interpolation.
How is spindle speed controlled?
Through a 0-10 V analogue output, with spindle encoder feedback on one axis.
What power supply does it need?
24 V DC.
Related products
- CNC Milling Controller
- CNC Retrofit Kit for Conventional Universal Milling Machine
- CNC Trainer Lathe Machine
- CNC Lathe Machine Table
Browse the full CNC trainer machine range for lathes, mills, controllers and automation trainers from JaincoLab.
Request a quote
To order the CNC Lathe Controller, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CTM-9031. Institutions and contractors buying under a tender can also reach us via the tenders page.
