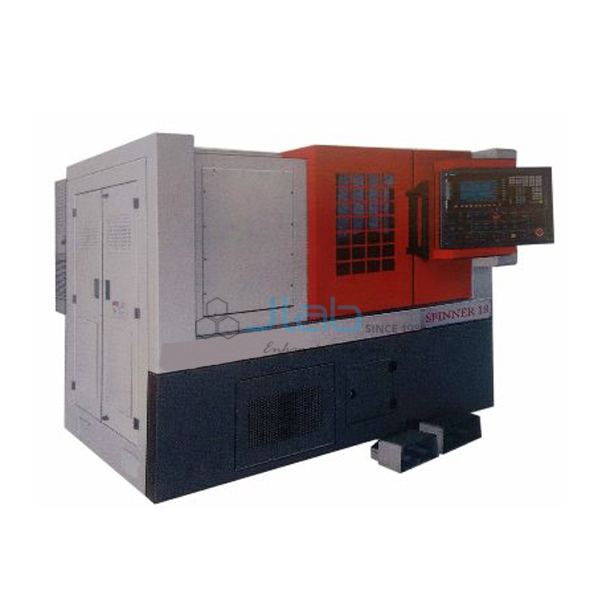

Spinner 18DX
Product Code : JA-CTM-9051
The Spinner 18DX (SKU JA-CTM-9051) is a CNC turning centre that adds a power-operated chuck with hydraulic cylinder and a hydraulic power pack to AC digital spindle and servo drives. Tools index on an 8-station bi-directional turret fitted with three boring bar holders and an axial tool holder. Training centres and engineering colleges use this CNC turning centre with hydraulic chuck when students move on to production-style turning. It is supplied by JaincoLab with a service toolkit and a list of optional accessories.
Specifications
This model is defined by its standard equipment: power-operated hydraulic chuck, hydraulic power pack, AC digital drives, 8-station bi-directional turret and programmable lubrication; swing, bore and spindle power are confirmed on the quotation.
| Product | Spinner 18DX |
| SKU | JA-CTM-9051 |
| Spindle and axis drives | AC digital spindle drive; AC digital servo drive for both axes |
| Work holding | Power-operated chuck with hydraulic cylinder; hydraulic power pack |
| Turret | 8 station, bi-directional |
| Tool holders | 3 boring bar holders, 1 axial tool holder, 1 set reduction sleeves |
| Coolant and lubrication | Coolant system; centralised and programmable lubrication; lube oil collector |
| Electrical panel | Air-conditioned, controlled temperature, humidity and dust-free electronics |
| Supplied with | Service toolkit |
| Optional accessories | Hydraulic tailstock with rotating centre; hydraulic collet chuck; Renishaw probe for auto tool setting; auto door; servo turret with live tools; part catcher; extra reduction sleeves; rear or side chip conveyor; bar feeder with bar puller; tooled-up machine |
Applications of the Spinner 18DX CNC turning centre
With a hydraulic power chuck as standard, the machine suits repeat turning jobs where students learn fast, consistent work clamping alongside CNC programming.
- Production-style CNC turning practice for advanced engineering students
- Hydraulic work-holding and power chuck operation training
- Turning and boring of repeat components in institute workshops
- Bar-fed or live-tool machining when the options are fitted
Scope of supply
Standard supply for the Spinner 18DX includes the power-operated hydraulic chuck, hydraulic power pack, 8-station turret with boring bar and axial holders, reduction sleeves, coolant and lubrication systems, air-conditioned panel and service toolkit. Tailstock, conveyor, bar feeder and other options are priced separately. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the option list and number of machines and the delivery destination. Single machines and multi-machine orders for training centres and tenders are supplied.
Frequently asked questions
What work holding is standard?
A power-operated chuck with hydraulic cylinder, driven by the hydraulic power pack.
What tooling comes with the turret?
Three boring bar holders, one axial tool holder and a set of reduction sleeves on the 8-station bi-directional turret.
Can a tailstock be added?
Yes. A hydraulically operated tailstock with rotating centre is an option.
What should a quotation request include?
Send the SKU JA-CTM-9051, the options needed, the number of machines and the delivery destination.
Related products
Browse the full CNC trainer machine range for lathes, mills, controllers and automation trainers from JaincoLab.
Request a quote
To order the Spinner 18DX, send the options needed, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CTM-9051.
