CNC Semi Production Lathe
Product Code : JA-CTM-9045

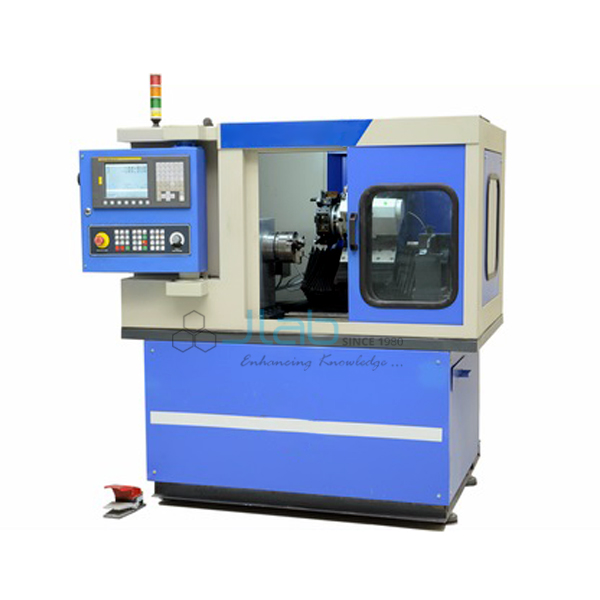

The CNC Semi Production Lathe (SKU JA-CTM-9045) is a CNC semi production lathe for training institutes that want students to learn on an industrial-style turning centre and also run light production on the same machine. It carries an 8-station automatic servo turret, a 150 mm hydraulic chuck, LM guides and metallic bellows over the guideways. Engineering colleges, polytechnics and industrial training centres use it for CNC turning practice. It is supplied by JaincoLab with the specification listed below.
Specifications
The lathe turns work up to 100 mm diameter and 370 mm length, with 0.010 mm positioning, ± 0.005 mm repeatability and 0.001 mm resolution; the full listed specification follows.
| Product | CNC Semi Production Lathe |
| SKU | JA-CTM-9045 |
| Bed type | Flat or 45 degree slant |
| Chuck | 150 mm diameter, hydraulic |
| Maximum turning diameter / length | 100 mm / 370 mm |
| Centre height | 150 mm |
| Swing over cross slide / over bed | 125 mm / 300 mm |
| Distance between centres | 420 mm |
| Positioning / repeatability / resolution | 0.010 mm / ± 0.005 mm / 0.001 mm |
| Spindle motor | AC servo, 5.1 kW (7 HP) |
| Spindle speed | 100 to 6000 rpm with VFD |
| Axis drives | Servo motors with servo drives |
| Axis travel | X 120 mm, Z 380 mm |
| Feed rate / rapid travel | 0 to 10,000 mm/min / 10,000 or 20,000 mm/min |
| Turret | Automatic servo type, 8 stations |
| Tool cross-section / boring bar | 20 x 20 mm / 16 mm |
| Tailstock | Base stroke 230 mm, quill stroke 100 mm, hydraulic or manual actuation |
| Lubrication and coolant | Automatic |
| FMS compatibility | Provided |
| Dimensions | 2200 x 1200 x 1700 mm |
| Power supply | 415 V ± 2%, 50 Hz, 3 phase |
Applications of the CNC semi production lathe
The machine serves two roles in one workshop: hands-on CNC turning practice for students and short production runs of turned parts between classes.
- CNC turning practicals for diploma and degree mechanical engineering students
- Part programming, tool setting and turret indexing exercises
- Industrial training on a turning centre with a production-style turret and hydraulic chuck
- Light production of turned components in institute workshops
- Integration into a flexible manufacturing system (FMS) cell, as the machine is FMS compatible
Scope of supply and ordering
The listing covers the CNC semi production lathe with hydraulic chuck, 8-station servo turret, servo axis drives, VFD spindle control, automatic lubrication and coolant, and tailstock. The CNC control, software and tooling package are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the machine configuration, bed type and number of units and the delivery destination. Single machines for an institute workshop and larger orders for training centres and tenders are supplied.
Frequently asked questions
Which bed types are available?
The lathe is listed with a flat bed or a 45 degree slant bed; state the preferred type in your enquiry.
What is the maximum work size?
Maximum turning diameter is 100 mm and maximum turning length is 370 mm, with 420 mm between centres.
What power supply does it need?
A 415 V, 3 phase, 50 Hz supply within ± 2%.
Can it be linked into an FMS cell?
Yes. FMS compatibility is provided on this machine.
