Centrifugal Pump Demonstration Unit
Product Code : JA-FMAHLE-9963

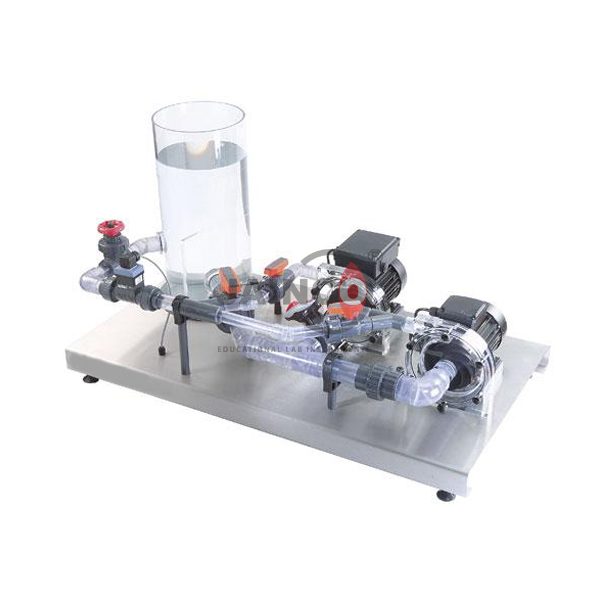

The Centrifugal Pump Demonstration Unit (SKU JA-FMAHLE-9963) is a small-scale set-up for studying the performance of a centrifugal pump. The pump, water reservoir, control valves and pipework are mounted on a stainless steel base, and the transparent volute lets students watch the impeller at work. JaincoLab supplies this centrifugal pump demonstration unit to engineering colleges and polytechnics for hydraulic machines practicals.
Specifications
Electronic sensors measure pump head pressure, suction pressure, flow rate and water temperature, and the software logs, processes and displays the data; motor rating, head and flow ratings are not listed and are confirmed on the quotation.
| Product | Centrifugal Pump Demonstration Unit |
| SKU | JA-FMAHLE-9963 |
| Layout | Water reservoir, centrifugal pump, control valves and pipework on a stainless steel base |
| Volute | Transparent |
| Sensors | Pump head pressure, suction, flow rate, water temperature |
| Computer link | PC link (computer not supplied) via an interface console listed as an essential accessory; USB lead, software, data logging and graphs |
| Motor, head and flow ratings | Confirmed on the quotation |
Applications of the centrifugal pump unit
The centrifugal pump unit is used to measure head, flow, power and efficiency at different valve settings and plot the characteristic curves of a centrifugal pump, the most common pump test in hydraulic machines laboratories.
- Demonstrating a centrifugal pump in operation
- Plotting head against flow rate
- Measuring suction conditions at different flow rates
- Comparing the centrifugal pump with the gear and plunger pump units
Scope of supply and ordering
The listing covers the centrifugal pump unit with reservoir, control valves, sensors and software. The interface console is an essential accessory and, with the computer, is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The unit is supplied by JaincoLab singly or with the other pump, fan and turbine units for colleges and tender orders.
Frequently asked questions
What does the unit measure?
Pump head pressure, suction, flow rate and water temperature.
Can the impeller be seen?
Yes. The pump volute is transparent.
Are the pump ratings listed?
No. Motor, head and flow ratings are confirmed on the quotation.
