Calibration of Pressure Gauges
Product Code : JA-FMAHLE-9979

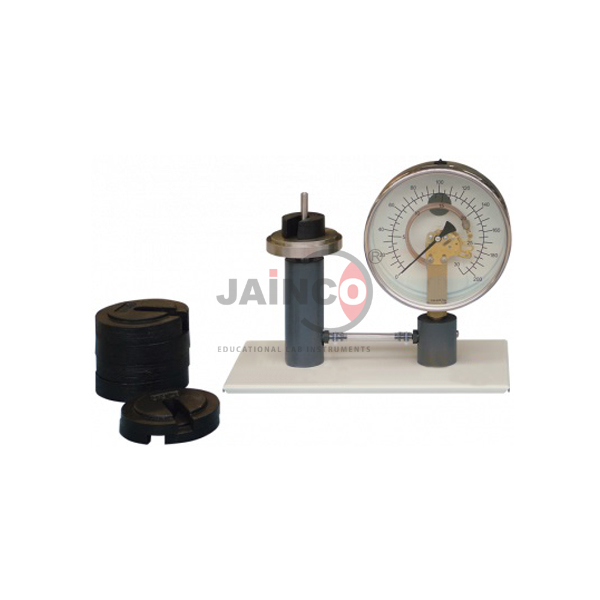

The Calibration of Pressure Gauges apparatus (SKU JA-FMAHLE-9979) uses a piston manometer to generate known pressures for checking a Bourdon tube pressure gauge. The gauge has a transparent dial so that students can see the spring mechanism move. JaincoLab supplies this pressure gauge calibration set to engineering colleges and polytechnics for fluid mechanics and instrumentation practicals. The listing does not give the weight set or pressure range, which are confirmed on the quotation.
Specifications
The piston manometer has an accurately fitting piston and cylinder without seals, with a 25 mm by 225 mm hydraulic cylinder and a 12 mm pressure piston; hydraulic oil transfers the force, and a hydraulic pump with storage tank and bleed mechanism fills the system.
| Product | Calibration of Pressure Gauges |
| SKU | JA-FMAHLE-9979 |
| Piston manometer | Accurately fitting piston and cylinder without seals |
| Hydraulic cylinder | Diameter 25 mm, length 225 mm |
| Pressure piston | Diameter 12 mm |
| Force transfer | Hydraulic oil |
| Gauge under test | Bourdon tube pressure gauge with transparent dial face showing the spring mechanism |
| Filling | Hydraulic pump with storage tank and bleed mechanism |
| Weights and pressure range | Confirmed on the quotation |
Applications of the pressure gauge calibration set
The pressure gauge calibration set shows how a known force on a piston of known area produces a reference pressure, and lets students compare it with the reading of a Bourdon tube gauge to draw a calibration curve, a standard practical in fluid mechanics and instrumentation.
- Calibrating a Bourdon tube pressure gauge against a piston manometer
- Plotting gauge error against reference pressure
- Demonstrating the working of a Bourdon tube through the transparent dial
- Fluid mechanics and instrumentation practicals in engineering colleges and polytechnics
Scope of supply and ordering
The listing covers the piston manometer, hydraulic pump with storage tank and bleed mechanism and the Bourdon tube pressure gauge. The weight set, hydraulic oil quantity and pressure range are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The set is supplied by JaincoLab singly or with other pressure measurement units for colleges and tender orders.
Frequently asked questions
What are the piston and cylinder sizes?
The pressure piston is 12 mm in diameter and the hydraulic cylinder is 25 mm in diameter and 225 mm long.
Why is the gauge dial transparent?
So that students can see the Bourdon tube spring mechanism while it is being calibrated.
Are the weights and pressure range listed?
No. The weight set and pressure range are confirmed on the quotation.
