Spray Tower
Product Code : JA-FMAHLE-7322

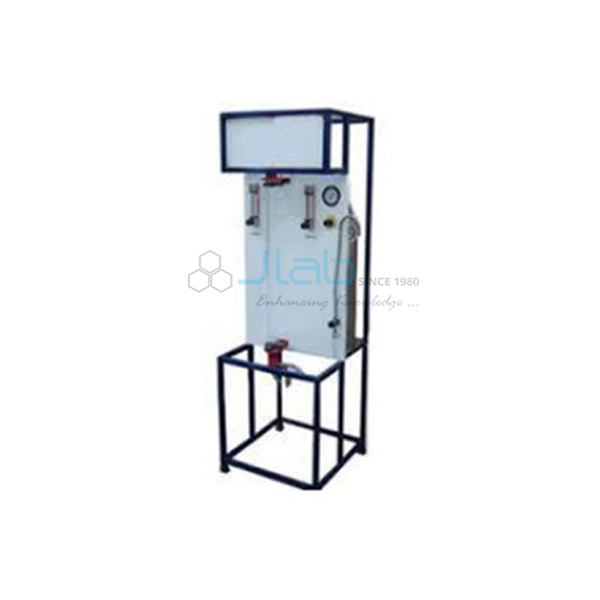

The Spray Tower (SKU JA-FMAHLE-7322) is a liquid-liquid extraction set-up in which one liquid is sprayed as fine drops through a second liquid in a glass column. It operates in semi-batch mode, with a fine spray nozzle at the top and the liquid-liquid interface held by controlling the extract flow with a needle leveller on the rotameter. This spray tower extraction apparatus feeds both liquids from separate stainless steel tanks by compressed air, and meters them with rotameters.
Specifications
The spray tower is specified by a borosilicate glass column of about 750 mm height and 45 mm diameter, two 20 litre SS feed tanks, two 10 litre SS extract and raffinate tanks, a 0-2 kg/cm2 pressure regulator and Bourdon gauge and two rotameters, as tabled.
| Product | Spray Tower |
| SKU | JA-FMAHLE-7322 |
| Extraction column | Borosilicate glass; height approx. 750 mm; diameter approx. 45 mm |
| Spray | Fine spray nozzle at the top |
| Feed tanks | Stainless steel, 20 L, 2 nos. |
| Extract and raffinate tanks | Stainless steel, 10 L, 2 nos. |
| Feed circulation | By compressed air |
| Pressure regulator | 0 - 2 kg/cm2 |
| Pressure gauge | Bourdon type, 0 - 2 kg/cm2 |
| Flow measurement | Rotameters, one each for solvent and solute |
| Required for operation | Compressed air 2 bar, 0.5 CFM; floor drain; water supply; chemicals and glassware |
Experiments with the spray tower
The tower is used to study mass transfer between two immiscible liquids when one is dispersed as drops, measuring how much solute passes into the extract at different flow rates.
- Liquid-liquid extraction in a spray column
- Mass transfer coefficient at different flow rates
- Holding and controlling the liquid-liquid interface
- Semi-batch extraction practicals in chemical engineering
Scope of supply and ordering
The listing covers the Spray Tower with glass column, spray nozzle, feed, extract and raffinate tanks, air regulator, gauge, rotameters and supporting structure. Compressed air, water, drain, chemicals and glassware are provided by the user. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete chemical engineering and unit operations laboratories for engineering colleges and polytechnics, including tender orders, are supplied.
Frequently asked questions
What size is the column?
Borosilicate glass, about 750 mm high and 45 mm in diameter.
How are the liquids fed?
By compressed air from separate SS feed tanks, metered on two rotameters.
What utilities are needed?
Compressed air at 2 bar and 0.5 CFM, a water supply and a floor drain.
Related products
- Solid Liquid Extraction Packed Bed Type
- Bubble Cap Distillation Column
- Sieve Plate Distillation Column
- Packed Distillation Column
See the complete fluid mechanics lab equipment range from JaincoLab, where this unit is listed, for flow, hydraulics and unit operations set-ups.
Request a quote
For a quotation on the Spray Tower, send the quantity, any accessories needed and the delivery destination through the JaincoLab contact page or email [email protected] with SKU JA-FMAHLE-7322. Buying under a laboratory tender? Use our tenders page.
