Solid Liquid Extraction Packed Bed Type
Product Code : JA-FMAHLE-7321

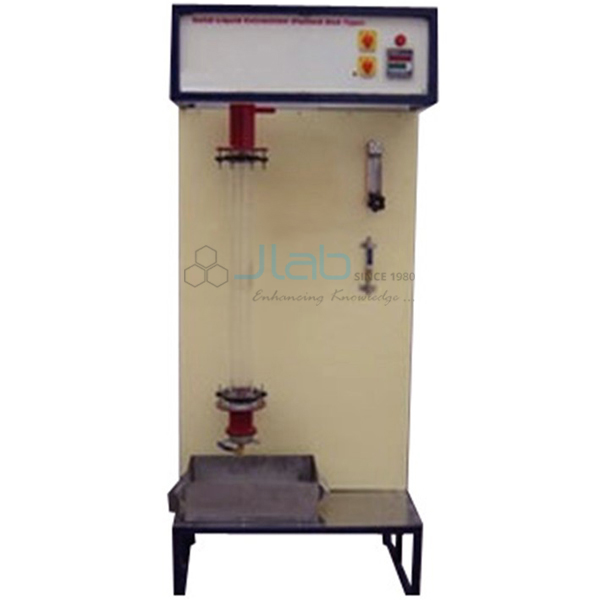

The Solid Liquid Extraction Packed Bed Type set-up (SKU JA-FMAHLE-7321) studies how a solvent extracts a component from a packed bed of solid. The solid sits on a stainless steel mesh in a borosilicate glass column, and the solvent enters near the bottom and flows upward counter-currently. This solid liquid extraction unit keeps the solvent at constant temperature in a heated bath with digital control and meters its flow with a rotameter.
Specifications
The extraction set-up is specified by a borosilicate glass column, a 30 litre double-wall stainless steel solvent tank, a polypropylene magnetic pump, a rotameter, a nichrome heater with 0-199.9 °C digital controller and a single-phase 220 V, 1.5 kW supply.
| Product | Solid Liquid Extraction Packed Bed Type |
| SKU | JA-FMAHLE-7321 |
| Extraction column | Borosilicate glass; SS mesh to support the solid |
| Flow arrangement | Solvent enters near the bottom and flows upward, counter-current to the solids |
| Solvent tank | Stainless steel, double wall, 30 L; kept in a heated bath |
| Solvent circulation | Magnetic pump, polypropylene |
| Flow measurement | Rotameter |
| Heater and control | Nichrome wire heater; digital temperature controller 0 - 199.9 °C |
| Temperature sensor | RTD PT-100 |
| Electricity | 1 phase, 220 V AC, 1.5 kW |
| Structure | Powder-coated rigid frame |
Experiments with the solid liquid extraction unit
The set-up is used to measure how the extracted component leaves a packed bed with time under controlled solvent flow and temperature, for systems such as water and inorganic salts or water and a sugar bed.
- Performance of solvent extraction from a packed bed
- Systems such as water/inorganic salts and water/sugar bed
- Effect of solvent flow rate on extraction
- Effect of solvent temperature on extraction
Scope of supply and ordering
The listing covers the Solid Liquid Extraction Packed Bed Type set-up with column, solvent tank and bath, pump, rotameter and controls. Solids and solvents are provided by the user. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete chemical engineering and unit operations laboratories for engineering colleges and polytechnics, including tender orders, are supplied.
Frequently asked questions
How does the solvent flow?
Upward through the packed bed, counter-current to the solids, entering near the bottom of the column.
How is solvent temperature controlled?
The 30 L solvent tank sits in a bath with a nichrome heater and a digital temperature controller.
Which systems can be studied?
For example water/inorganic salts and water/sugar bed.
