Sieve Plate Distillation Column
Product Code : JA-FMAHLE-7323

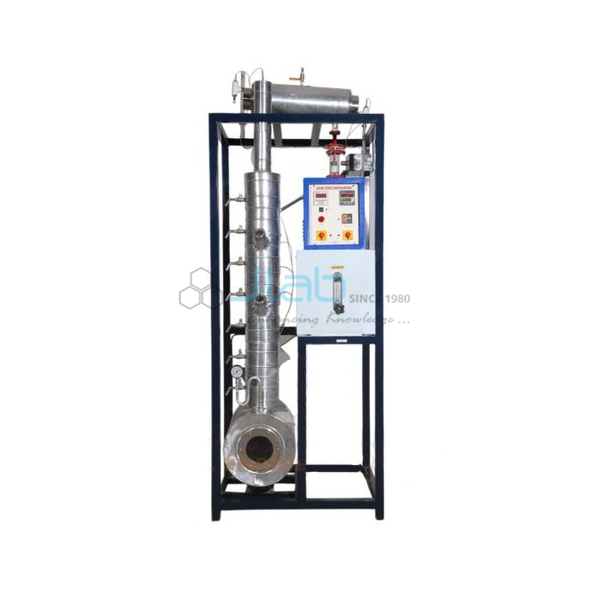

The Sieve Plate Distillation Column (SKU JA-FMAHLE-7323) is a stainless steel column with seven sieve trays for studying batch distillation of a binary mixture. An electrically heated reboiler sits at the bottom, and the top vapours are condensed in a stainless steel shell and tube condenser cooled from an overhead water tank. This sieve plate distillation column divides the condensate into reflux and distillate with an automatic reflux divider whose R/D ratio can be varied.
Specifications
The sieve plate column is specified by a 110 mm diameter SS column with seven sieve trays, an SS shell and tube condenser, a cooling-water rotameter, RTD PT-100 sensors, a 0-2 kg/cm2 Bourdon gauge and 5 litre SS bottom and distillate tanks, running on 220 V, 6 kW.
| Product | Sieve Plate Distillation Column |
| SKU | JA-FMAHLE-7323 |
| Column | Stainless steel, dia. 110 mm, seven sieve trays; insulated |
| Reboiler | Electrically heated, nichrome wire heaters |
| Condenser | Shell and tube, stainless steel |
| Cooling water | Rotameter for flow rate; overhead tank supply |
| Reflux divider | Automatic; R/D ratio variable |
| Temperature sensors | RTD PT-100 |
| Pressure gauge | Bourdon type, 0 - 2 kg/cm2 |
| Tanks | Bottom product and distillate, stainless steel, 5 L each |
| Utilities | Water 2 LPM at 5 m head; drain; 1 phase, 220 V AC, 6 kW; refractometer and chemicals |
Experiments with the sieve plate distillation column
The column is used to run batch distillation at total reflux and at set reflux ratios, and to compare the measured compositions with the number of theoretical plates.
- Operating at total reflux and finding the minimum number of theoretical plates
- Batch distillation curves for a binary system
- Verifying the binary distillation equation
- Comparing sieve trays with bubble-cap and packed columns
Scope of supply and ordering
The listing covers the Sieve Plate Distillation Column with reboiler, condenser, reflux divider, rotameter, sensors and tanks. The refractometer and chemicals are provided by the user. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete chemical engineering and unit operations laboratories for engineering colleges and polytechnics, including tender orders, are supplied.
Frequently asked questions
How many trays does the column have?
Seven sieve trays in a 110 mm diameter stainless steel column.
What utilities are needed?
Water at 2 LPM and 5 m head, a drain and a 220 V, 6 kW single-phase supply.
How are samples analysed?
With a refractometer and the chemicals for the binary system, provided by the user.
