Venturi Tube
Product Code : JA-FMAHLE-10012

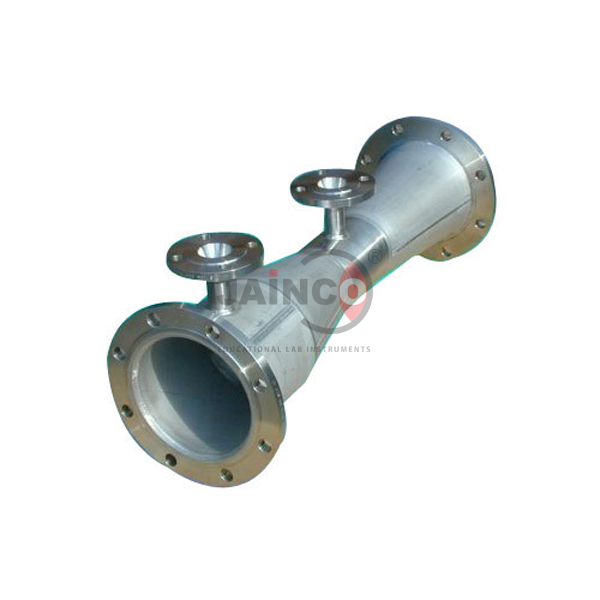

The Venturi Tube (SKU JA-FMAHLE-10012) is a measuring section with six static pressure points, used as an accessory on an air flow experimental plant to investigate the continuity equation and Bernoulli's principle. JaincoLab supplies this venturi tube to engineering colleges and polytechnics for fluid mechanics practicals, where students read the static pressure along the converging and diverging section and relate it to the change in flow area.
Specifications
The source data list six pressure measuring points along the measuring section for static pressure and an inner diameter of 84.6 to 59 mm; the base experimental plant it fits, its connections and the manometer used are confirmed on the quotation.
| Product | Venturi Tube |
| SKU | JA-FMAHLE-10012 |
| Type | Venturi tube, accessory for an experimental plant |
| Pressure measuring points | 6, along the measuring section, for static pressure |
| Inner diameter | 84.6 to 59 mm |
| Purpose | Investigating the continuity equation and Bernoulli's principle |
Applications of the venturi tube
The venturi tube is used to show that velocity rises and static pressure falls as the flow area narrows, and to check the measured pressures against the continuity equation and Bernoulli's principle in fluid mechanics and aerodynamics practicals.
- Measuring the static pressure distribution along a venturi
- Verifying the continuity equation for a converging and diverging section
- Demonstrating Bernoulli's principle with measured pressures
- Fluid mechanics practicals in mechanical and aeronautical engineering courses
Scope of supply and ordering
The listing covers the venturi tube with six static pressure points as an accessory. The base experimental plant, pressure display and connecting hoses are not part of this listing and are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The venturi tube is supplied by JaincoLab on its own or together with the base plant and other accessories for colleges and tender orders.
Frequently asked questions
How many pressure points does it have?
Six static pressure measuring points along the measuring section.
What is the bore?
The listed inner diameter is 84.6 to 59 mm.
Is the base experimental plant included?
No. The venturi tube is an accessory; the base plant and pressure display are confirmed on the quotation.
Related products
- Air Flow Experimental Plant
- Measurement of Boundary Layers
- Orifice Plate Flow Meter With Transducer
- Bernoullis Principle Demonstrator
The base air flow plant and other accessories are listed in the JaincoLab fluid mechanics lab equipment range.
Request a quote
To order the Venturi Tube, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
