Aggregate Impact Tester
Product Code : JA-SAAFT-9870

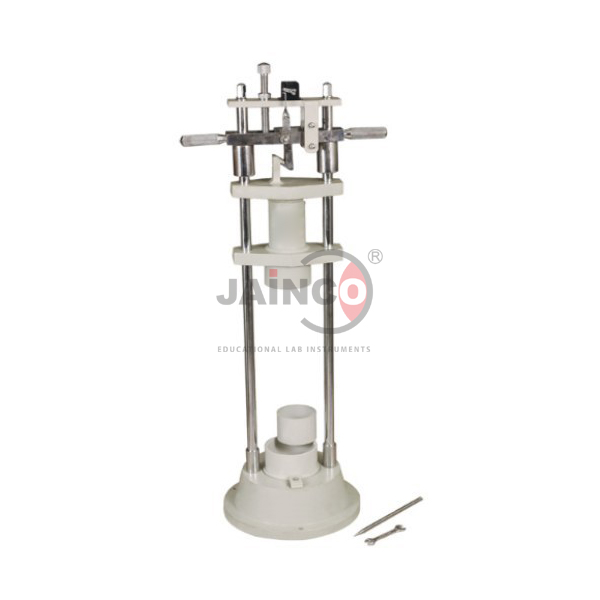

The Aggregate Impact Tester (SKU JA-SAAFT-9870) determines the aggregate impact value, the resistance of road and concrete aggregate to sudden shock. A base and support columns form a rigid frame around a quick-release trigger mechanism so that the hammer falls freely, the free fall is adjustable through 380 ± 5 mm, and the hammer has a locking arrangement. This aggregate impact tester is supplied by JaincoLab for civil engineering, highway and concrete laboratories in polytechnics and engineering colleges.
Specifications
The tester has a rigid base-and-column frame, a quick-release trigger for free fall of the hammer, a fall adjustable through 380 ± 5 mm and a hammer locking arrangement; hammer mass and cup dimensions are not listed in the product data and are confirmed on the quotation.
| Product | Aggregate Impact Tester |
| SKU | JA-SAAFT-9870 |
| Frame | Base and support columns forming a rigid framework |
| Release | Quick-release trigger mechanism for free fall |
| Free fall | Adjustable through 380 ± 5 mm |
| Hammer | With locking arrangement |
| Test | Aggregate impact value |
Experiments with the aggregate impact tester
Students fill the cup with graded aggregate, apply the specified number of hammer blows and sieve the crushed sample to calculate the aggregate impact value.
- Aggregate impact value of road aggregates
- Toughness of aggregates for concrete
- Comparing aggregate sources
- Highway materials testing
- Civil engineering materials practicals
Scope of supply and ordering
This listing covers the aggregate impact tester with frame, hammer and release mechanism. Accessories, spares and quantities are confirmed on the quotation. Measure, tamping rod and sieves are confirmed on the quotation.
Packing, lead time and any minimum order for the Aggregate Impact Tester are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
What does it measure?
The aggregate impact value - resistance of aggregate to sudden impact.
What is the height of fall?
Adjustable through 380 ± 5 mm.
How is the hammer released?
By a quick-release trigger for a free fall; it also has a locking arrangement.
