Turbine Service Unit
Product Code : JA-FMAHLE-9966

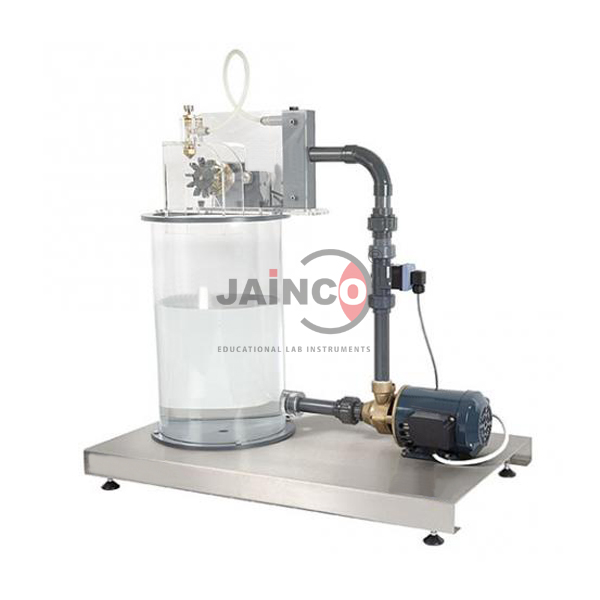

The Turbine Service Unit (SKU JA-FMAHLE-9966) is a bench-top unit that supplies water to, loads and measures a range of small demonstration turbines, such as the impulse and reaction turbine units. A peripheral pump draws from a clear acrylic reservoir, a paddle wheel flow meter measures the flow and a magnetic dynamometer controlled from software loads the turbine. JaincoLab supplies this turbine service unit to engineering colleges for hydraulic machines practicals.
Specifications
The reservoir holds up to 28 litres, and the peripheral pump gives up to 20 litres per minute or up to 30 m head (not at the same time); the magnetic dynamometer and pump are software controlled, which also allows remote operation over the internet, and the unit links to a Windows computer by USB.
| Product | Turbine Service Unit |
| SKU | JA-FMAHLE-9966 |
| Type | Bench-top service unit for testing a range of turbines |
| Reservoir | Clear acrylic, up to 28 litres |
| Pump | Peripheral type; up to 20 l/min or up to 30 m head (not simultaneously) |
| Flow meter | Paddle wheel type |
| Loading | Magnetic dynamometer controlled from software |
| Control | Software control of pump and brake; remote operation over the internet possible |
| Computer link | USB interface device and USB lead; standard Windows computer (not supplied) |
| Software | Education software with results processing and help; driver for other software packages |
Applications of the turbine service unit
The turbine service unit gives each demonstration turbine a controlled water supply and a measurable load, so students can run the same test procedure on impulse and reaction turbines and compare their speed, torque, power and efficiency.
- Supplying and loading the impulse and reaction turbine demonstration units
- Recording turbine speed, torque, power and flow on a PC
- Comparing turbine types under the same supply conditions
- Remote laboratory sessions using the software-controlled pump and brake
Scope of supply and ordering
The listing covers the service unit with reservoir, peripheral pump, paddle wheel flow meter, magnetic dynamometer, USB interface and software. The turbines tested on it and the computer are separate items confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The service unit is supplied by JaincoLab with the turbines ordered for colleges and tender orders.
Frequently asked questions
Which turbines can be tested?
It is a service unit for a range of small demonstration turbines, such as the impulse and reaction turbine units listed in the same range.
What is the pump capacity?
Up to 20 litres per minute or up to 30 m head, not at the same time.
How is the turbine loaded?
With a magnetic dynamometer controlled from the software.
