Fluid Properties Apparatus
Product Code : JA-FMAHLE-9942

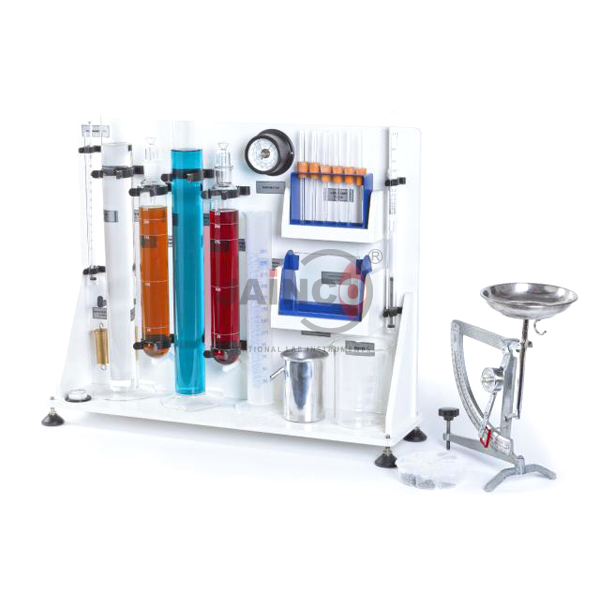

The fluid properties apparatus (SKU JA-FMAHLE-9942) introduces students to the basic properties of fluids: density and relative density, capillarity between flat plates and in tubes, viscosity, atmospheric pressure and buoyancy. All components are stored on a PVC support frame, with the hydrometer jars and viscometer tubes clipped to the stand. It is supplied by JaincoLab for fluid mechanics and physics practicals in engineering colleges and polytechnics.
Specifications
The fluid properties apparatus includes two 40 mm falling sphere viscometer tubes, two 50 x 450 mm hydrometer jars, a 50 ml density bottle, a dual-scale lever balance, a -10 to 50 °C thermometer, a 910 to 1060 mbar aneroid barometer and six capillary tubes of 0.4 to 2.2 mm bore.
| Product | Fluid Properties Apparatus |
| SKU | JA-FMAHLE-9942 |
| Universal hydrometer | 0.70 to 2.00 SG, in protective housing |
| Falling sphere viscometers | 2 tubes, 40 mm diameter, calibration marks at 0, 25, 100, 175, 200 and 220 mm; steel spheres in storage box |
| Hydrometer jars | 2, 50 mm diameter, 450 mm high |
| Density bottle | 50 ml |
| Lever balance | Dual scale, 0 to 250 g x 1 g and 0 to 1 kg x 10 g, adapted for the Archimedes apparatus |
| Thermometer | Spirit filled glass, -10 to 50 °C |
| Barometer | Direct reading aneroid, 910 to 1060 mbar |
| Capillary tubes | 6, 150 mm long, 0.4, 0.6, 0.8, 1.2, 1.7 and 2.2 mm bore |
| Other items | Parallel plate capillary apparatus, Archimedes apparatus (displacement vessel, bucket, cylinder), 250 ml measuring cylinder, 600 ml glass beaker |
| Frame | PVC support frame for storage |
Experiments with the fluid properties apparatus
The fluid properties apparatus lets students measure density with the density bottle and hydrometer, capillary rise in tubes and between plates, viscosity by timing a falling sphere, atmospheric pressure on the barometer and upthrust with the Archimedes apparatus on the lever balance.
- Density and relative density of liquids
- Capillary elevation between flat plates and in circular tubes
- Viscosity by the falling sphere method
- Reading atmospheric pressure
- Buoyancy and Archimedes' principle
Scope of supply and ordering
The listing covers the components named in the table on the PVC support frame, including the steel spheres for the viscometers. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the fluid properties apparatus are confirmed on each quotation for the quantity and delivery destination. Single sets and multiple sets for student groups are supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which fluid properties can be measured?
Density and relative density, capillarity between flat plates and in circular tubes, viscosity, atmospheric pressure and buoyancy.
What bores do the capillary tubes have?
Six tubes 150 mm long with bores of 0.4, 0.6, 0.8, 1.2, 1.7 and 2.2 mm.
What are the ranges of the balance and barometer?
The dual-scale lever balance reads 0 to 250 g in 1 g steps and 0 to 1 kg in 10 g steps; the aneroid barometer reads 910 to 1060 mbar.
