Large Angle Stability System
Product Code : JA-FMAHLE-9951

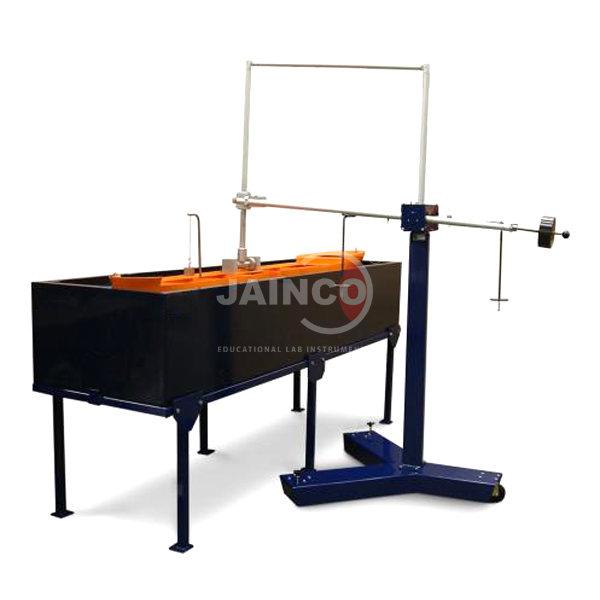

The large angle stability system (SKU JA-FMAHLE-9951) lets students study ship hydrostatics and stability at large angles of heel. It comprises a water tank, a floating 1/70 scale GRP model of a 28,000 tonne general cargo vessel, a dynamometer that measures the righting moment and a battery-powered clinometer. It is supplied by JaincoLab for naval architecture and fluid mechanics laboratories in engineering colleges and maritime training institutes.
Specifications
The large angle stability system has a floor-standing water tank on castors with counterweights, a 1/70 scale GRP cargo ship model with transverse watertight bulkheads and individual flooding valves, a dynamometer and a clinometer reading 0 to 45 degrees.
| Product | Large Angle Stability System |
| SKU | JA-FMAHLE-9951 |
| Model | 1/70 scale model of a 28,000 tonne general cargo vessel, glass reinforced plastic (GRP) |
| Compartments | Transverse watertight bulkheads in representative positions; individual flooding valves |
| Dynamometer | Measures righting moment; holds the model at any angle of heel in range, free to trim or with heeling axis horizontal; exerts no vertical force |
| Clinometer | Battery powered, 0 to 45 degrees |
| Tank | Water tank, floor standing, with castors; counterweights supplied |
| Options | Models of other ships |
Experiments on the large angle stability system
The large angle stability system lets students measure the righting moment of a ship model at angles of heel up to 45 degrees, draw its curve of statical stability and see how flooding a compartment changes stability.
- Righting moment and curve of statical stability at large angles of heel
- Stability with the model free to trim or with a horizontal heeling axis
- Effect of flooding individual compartments
- Comparison of measured stability with hydrostatic calculations
- Ship stability practicals in naval architecture and maritime training courses
Scope of supply and ordering
The listing covers the water tank on castors with counterweights, the 1/70 scale cargo ship model with bulkheads and flooding valves, the dynamometer and the battery-powered clinometer. Other ship models are optional. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the large angle stability system are confirmed on each quotation for the quantity and delivery destination. Units for single laboratories and institutional orders are supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What ship model is supplied?
A 1/70 scale GRP model of a 28,000 tonne general cargo vessel, with transverse watertight bulkheads and individually flooded compartments.
What angle range can be measured?
The battery-powered clinometer measures inclination from 0 to 45 degrees, and the dynamometer holds the model at any angle of heel in that range.
Are other ship models available?
Yes. Models of other ships are listed as optional accessories.
Related products
Flotation and stability units are listed in the JaincoLab fluid mechanics lab equipment range.
Request a quote
To order the large angle stability system, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
