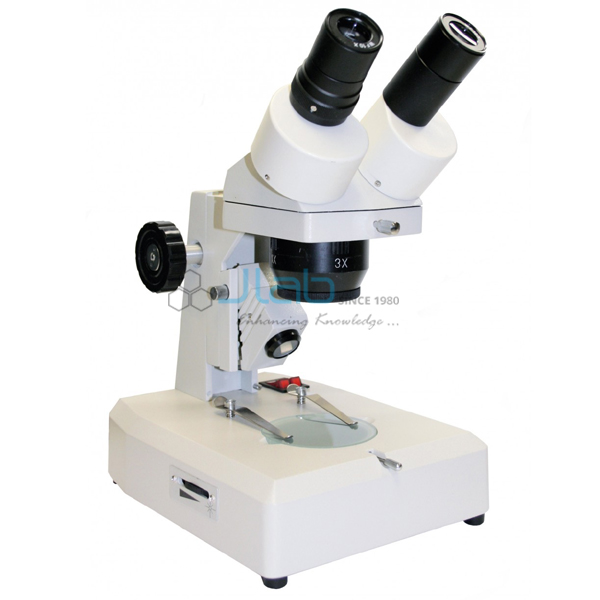

LED Illumination Dual Power Binocular Stereo Microscope
Product Code : JA-M-8110
The LED Illumination Dual Power Binocular Stereo Microscope (SKU JA-M-8110) gives two fixed magnifications on a rotating turret, supplied by JaincoLab in three versions: 10x and 20x, 10x and 30x, or 20x and 40x. A 45-degree binocular head rotates through 360 degrees, WF10x eyepieces can be locked in with a set screw, and top and bottom LEDs are dimmed separately. Schools and colleges use this dual power binocular stereo microscope for dissections and whole specimens.
Specifications
The listing gives a 45-degree binocular head rotating 360 degrees, 55 to 75 mm interpupillary distance, +/-5 dioptre on the left tube, paired WF10x eyepieces, objective pairs of 1x/2x, 1x/3x or 2x/4x, an 80 mm working distance, rack and pinion focusing over 90 mm and 75 mm stage plates.
| Product | LED Illumination Dual Power Binocular Stereo Microscope |
| SKU | JA-M-8110 |
| Versions | 10x and 20x; 10x and 30x; 20x and 40x |
| Head | Binocular, 45 degrees, rotates 360 degrees; IPD 55-75 mm; +/-5 dioptre on left tube |
| Eyepieces | WF10x pair, lockable with set screw; WF15x and WF20x optional |
| Objectives | Turret pairs 1x/2x, 1x/3x or 2x/4x |
| Working distance | 80 mm |
| Focusing | Rack and pinion with slip clutch, two knobs with tension adjustment, 90 mm range |
| Stage | 75 mm frosted glass plate and 75 mm reversible black and white plate, spring clips |
| Illumination | Top incident LED (angle adjustable) and bottom transmitted LED, separate switches and dimmers |
| Size | 14 in high; base 7 x 8.75 in |
Applications of the dual power binocular stereo microscope
Two magnifications on one turret let students find a specimen at low power and then look closer without changing lenses, which suits dissections, insects, flowers and soil samples in school and college biology practicals.
- Dissections in biology practicals
- Insects, seeds and flower parts
- Soil and pond samples
- Rock and mineral surfaces
- Small parts inspection in workshops
Scope of supply and ordering
One unit is one binocular stereo microscope in the version ordered, with WF10x eyepieces, both stage plates and LED lighting. Optional WF15x or WF20x eyepieces, spares and quantities are confirmed on the quotation.
Packing, minimum order quantity and lead time depend on the order size and the delivery destination, and each is confirmed on the quotation. Bulk orders for school and college laboratories and tender supplies are handled, including export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which magnification pairs can be chosen?
10x and 20x, 10x and 30x, or 20x and 40x, from objective pairs 1x/2x, 1x/3x or 2x/4x with WF10x eyepieces.
Can students remove the eyepieces?
The eyepieces can be locked in with a set screw.
What is the working distance?
The standard working distance is 80 mm.
Related products
- 3 Way LED Light Dual Power Stereo Microscope
- Dual Power Binocular Stereo Microscope
- Tri Power LED Stereo Microscope
- Cordless LED Binocular Stereo Microscope
Other student, laboratory and research models are listed in the microscopes range.
Request a quote
For a price on the LED Illumination Dual Power Binocular Stereo Microscope (JA-M-8110), share the quantity required and the delivery destination through the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
