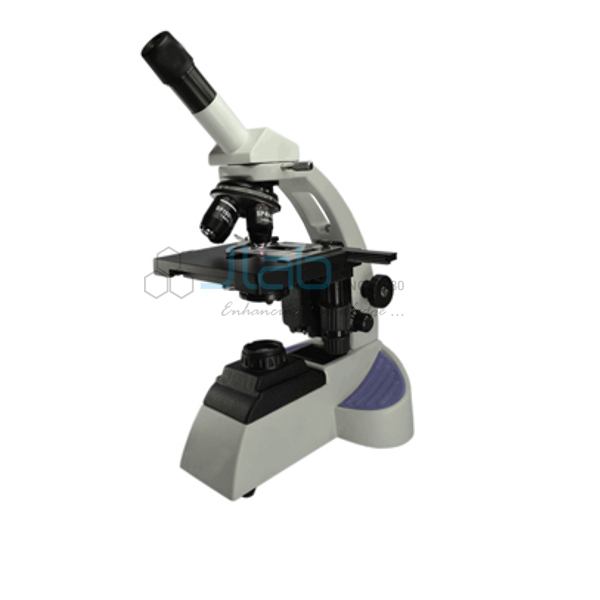

Advanced Monocular Research Microscope
Product Code : JA-M-944
The Advanced Monocular Research Microscope (SKU JA-M-944) pairs a 45-degree inclined monocular head, rotatable through 360 degrees, with a built-in graduated 135 x 120 mm mechanical stage driven by low coaxial controls. Achromatic 4x, 10x, 40x SL and 100x SL oil-immersion objectives sit on a quadruple nosepiece, with a WF 10x eyepiece plus a choice of H5x, H6x or H15x. A 6 V 20 W halogen lamp and a daylight mirror attachment provide the light. JaincoLab manufactures it for college labs.
Specifications
Listed: 45-degree monocular head rotating 360 degrees; quadruple nosepiece with click stops; built-in graduated mechanical stage of 135 x 120 mm with low coaxial drive; 6 V 20 W halogen lamp, 220/110 V, with mirror attachment; four achromatic objectives up to 100x oil; WF 10x and H5x, H6x or H15x eyepieces.
| Product | Advanced Monocular Research Microscope |
| SKU | JA-M-944 |
| Head | Monocular, 45-degree inclined, rotatable through 360 degrees |
| Nosepiece | Quadruple, accurate centring, positive click stops |
| Stage | Built-in graduated mechanical stage, 135 x 120 mm, low coaxial drive controls |
| Illumination | 6 V 20 W halogen lamp, 220/110 V; mirror attachment for daylight |
| Objectives | Achromatic 4x, 10x, 40x SL and 100x SL oil immersion |
| Eyepieces | WF 10x and one of H5x, H6x or H15x |
Applications of the advanced monocular research microscope
College departments use it where oil-immersion work is needed but a binocular head is not, for example in microbiology, pathology teaching and botany sections, scanning slides smoothly with the coaxial stage controls.
- Oil-immersion microbiology practicals
- Blood and tissue slide teaching
- Botany and zoology section study
- Project work in college labs
- Labs with halogen or daylight illumination
Scope of supply and ordering
One unit is one advanced monocular research microscope with four objectives, eyepieces, halogen lamp and mirror attachment. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which objectives are fitted?
Achromatic 4x, 10x, 40x SL and 100x SL oil immersion.
What is the stage size?
A built-in graduated mechanical stage of 135 x 120 mm with low coaxial drive controls.
Which eyepieces are supplied?
A WF 10x eyepiece with H5x, H6x or H15x.
Related products
- Advanced Trinocular Research Microscope
- Monocular Research Microscope
- Binocular Research Microscope
- Trinocular Research Microscope
Browse the full microscopes range for other teaching aids and kits in the same category.
Request a quote
To order the Advanced Monocular Research Microscope, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
