Semiconductor Diode
Product Code : JA-AET-1464

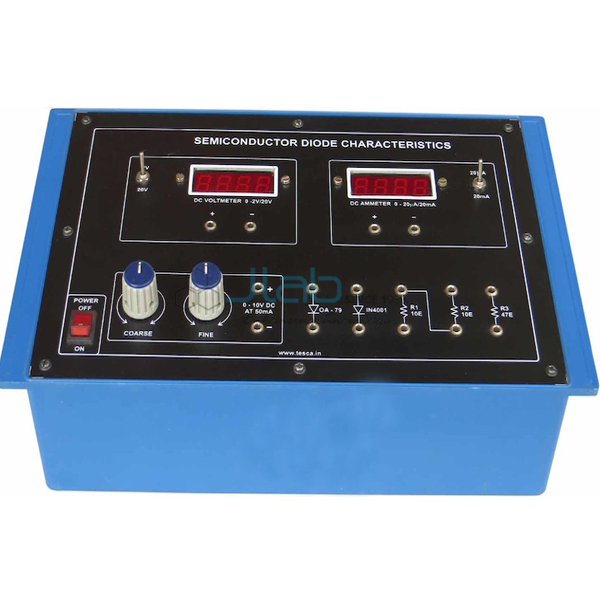

The semiconductor diode trainer is used to plot the forward and reverse bias characteristics of germanium and silicon diodes and to determine the static and dynamic resistance of a forward-biased P-N junction. A 0-10 V DC regulated supply with coarse and fine controls, a 3½ digit digital voltmeter and a 3½ digit digital current meter are built in (SKU JA-AET-1464).
Specifications
Listed parts and ratings of the diode board:
| Product | Semiconductor Diode |
| SKU | JA-AET-1464 |
| DC supply | 0-10 V DC at 50 mA, continuously variable with coarse and fine controls, regulated |
| Voltmeter | Digital DC, 3½ digit, dual range 2 V / 20 V |
| Current meter | Digital DC, 3½ digit, dual range (20 mA and a lower range; exact low range confirmed on the quotation) |
| Diodes | Germanium and silicon |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch and fuse |
| Patch cords | 4 mm, 50 cm |
Diode experiments
The listed experiments are:
- Forward and reverse bias characteristics of germanium and silicon diodes
- Static and dynamic resistance of a forward-biased P-N junction
Scope of supply and ordering
The listing covers the semiconductor diode board with its germanium and silicon diodes, built-in meters, patch cords and operating instructions, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
Which diodes can be compared?
A germanium diode and a silicon diode.
What resistances can be determined?
The static and the dynamic resistance of the forward-biased P-N junction.
How is the voltage set?
With the coarse and fine controls of the 0-10 V DC regulated supply.
