Junction Diode Rectifier and Filter
Product Code : JA-AET-1468

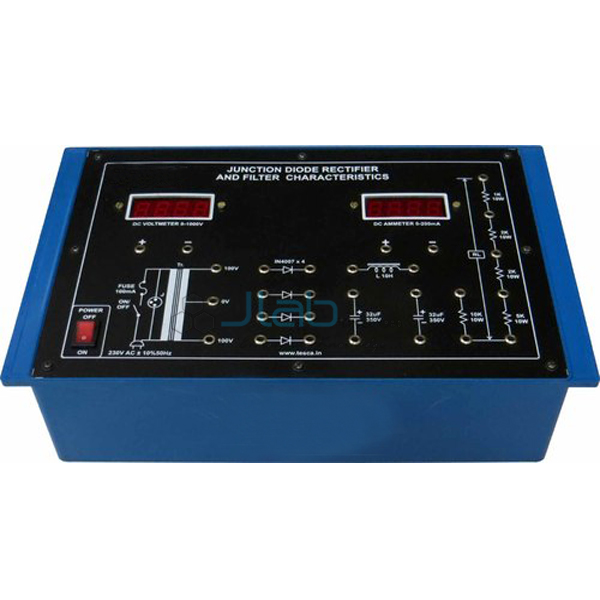

The junction diode rectifier and filter trainer compares half-wave, centre-tap full-wave, bridge full-wave and voltage doubler rectifiers, measuring output and ripple content with different resistive loads. It also covers filter and load regulation characteristics with capacitor, doubled-capacitor, inductor, L-section and pi-section filters, using a 100-0-100 V, 100 mA centre-tap transformer, four silicon diodes and a filter choke (SKU JA-AET-1468).
Specifications
The rectifier board carries these parts and ratings:
| Product | Junction Diode Rectifier and Filter |
| SKU | JA-AET-1468 |
| Transformer | Mains transformer, secondary 100-0-100 V centre tap at 100 mA |
| Voltmeter | Digital DC, 3½ digit, 1000 V range |
| Current meter | Digital DC, 3½ digit, 200 mA range |
| Diodes | Four silicon junction diodes |
| Choke | Filter choke |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | AC millivoltmeter |
Rectifier and filter experiments
The listed studies are:
- Output and ripple content of half-wave, full-wave (centre tap), full-wave (bridge) and voltage doubler circuits with different resistive loads
- Filter and load regulation characteristics of half-wave and full-wave rectifiers
- Capacitor filter and capacitor filter with doubled capacitance
- Inductor filter
- Capacitor-input L-section and pi-section filters
Scope of supply and ordering
The listing covers the rectifier and filter board with its transformer, meters, patch cords and operating instructions, supplied by JaincoLab. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
Which rectifier circuits can be built?
Half-wave, full-wave centre-tap, full-wave bridge and a voltage doubler circuit.
Which filters are included?
Capacitor, capacitor with doubled value, inductor, capacitor-input L-section and capacitor-input pi-section filters.
What transformer is used?
A mains transformer with a 100-0-100 V, 100 mA centre-tapped secondary.
