Charging and Discharging of a Condenser
Product Code : JA-AET-1469

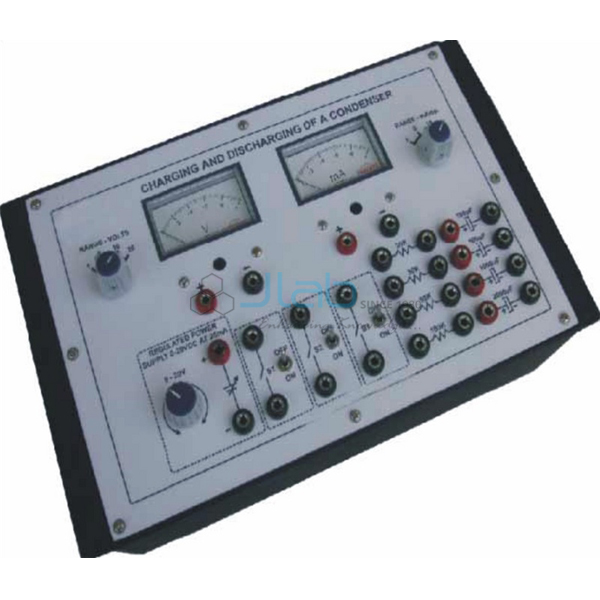

The capacitor charging and discharging trainer is used to plot voltage and current against time while a condenser charges and discharges, and to find the time constant from each graph. It has a 0-20 V DC, 25 mA continuously variable regulated supply, four electrolytic condensers and three SPDT switches (SKU JA-AET-1469).
Specifications
Parts listed for the condenser board:
| Product | Charging and Discharging of a Condenser |
| SKU | JA-AET-1469 |
| DC supply | 0-20 V DC at 25 mA, continuously variable, regulated |
| Condensers | Four electrolytic |
| Switches | Three SPDT |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus required | Digital stop clock; digital DC voltmeter (2 V / 20 V); digital DC current meter (20 mA) |
Graphs plotted
The listed experiments determine the time constant from:
- Voltage across the condenser against time while charging
- Charging current against time
- Voltage across the condenser against time while discharging
- Discharge current against time
Scope of supply and ordering
The listing covers the charging and discharging board with patch cords and operating instructions, supplied by JaincoLab; a stop clock and digital meters are listed as other apparatus required. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
What is determined in the condenser experiment?
The time constant, found from voltage-time and current-time graphs for both charging and discharging.
How many condensers are provided?
Four electrolytic condensers, with three SPDT switches on the panel.
What else is needed?
A digital stop clock, a digital DC voltmeter with 2 V and 20 V ranges and a digital DC current meter with a 20 mA range.
