Static Cone Penetrometer
Product Code : JA-ST-9837

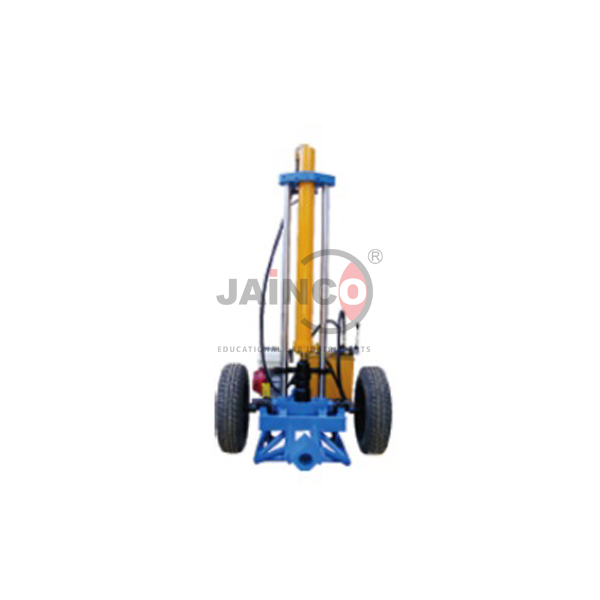

The Static Cone Penetrometer (SKU JA-ST-9837) pushes a truncated 60° steel cone with a 10 cm² base vertically into the ground by static thrust. The cone resistance is close to the load an actual pile can carry per unit area of its tip, so readings at set intervals give a continuous bearing capacity and shear strength profile. With the optional friction jacket, soil types can also be identified. Hand-operated 30 kN and engine-driven 100 kN models are listed.
Specifications
Models and cone data:
| Product | Static Cone Penetrometer |
| SKU | JA-ST-9837 |
| Cone | Truncated steel cone, 60° angle, 10 cm² base area |
| Loading | Static thrust, vertical |
| Hand operated model | 30 kN (3000 kgf) |
| Engine driven model with digital indicator | 100 kN (10,000 kgf) |
| Engine driven model | 100 kN (10,000 kgf) |
| Option | Friction jacket for soil type identification |
Applications of the static cone penetrometer
- Estimating pile length and load capacity where piles pass through soft compressible strata to hard clay, sand or gravel
- Continuous bearing capacity and shear strength profiles at each sounding
- Identifying soil layers with the friction jacket
Scope of supply and ordering
Choose the 30 kN hand-operated model or a 100 kN engine-driven model, with or without the digital indicator, and say whether the friction jacket is needed. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
What cone does the penetrometer use?
A truncated steel cone with a 60° angle and a 10 cm² base, forced vertically into the soil by static thrust.
Which models are available?
A 30 kN (3000 kgf) hand-operated model and 100 kN (10,000 kgf) engine-driven models, one of them with a digital indicator.
How does the test help in pile design?
The cone resistance is nearly equal to the load an actual pile can carry per unit area of its tip, so the profile helps fix pile length and estimate load capacity.
Related products
- Standard Penetration Test Set
- Cone Penetration Testing
- Electrical CPT (U)
- Fox-100 Stand Alone Penetrometer Pusher
The soil testing equipment range lists further items of this kind.
Request a quote
Enquiries for the Static Cone Penetrometer can be sent with the quantity needed through our contact page. Tender and project enquiries can be sent through the tenders page.
