Pressure and Volume Controllers
Product Code : JA-ST-9823

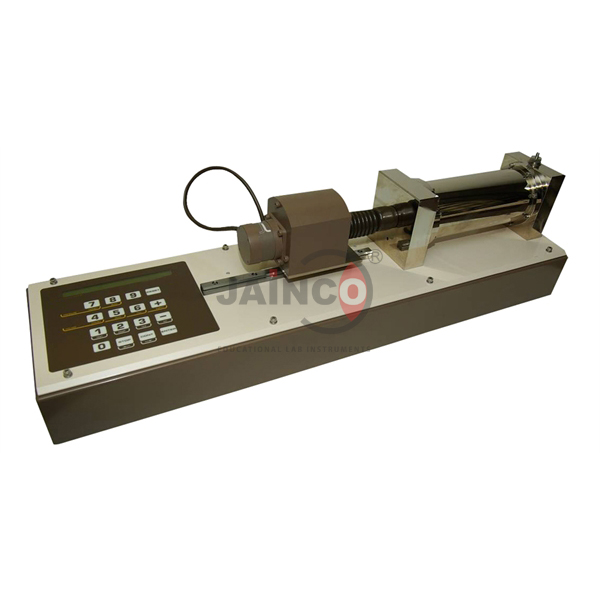

Pressure and Volume Controllers (SKU JA-ST-9823) are general-purpose pressure sources and volume change gauges for geotechnical testing. They apply water, oil or air pressure from 0 up to 100 MPa, measure volume change, and can be logged and controlled from a PC. Three levels are listed: Enterprise for commercial testing to 1 MPa, Standard to 4 MPa for teaching and research, and Advanced for the highest pressure and volume accuracy. They are supplied by JaincoLab.
Specifications
The controller range covers these levels and ratings:
| Product | Pressure and Volume Controllers |
| SKU | JA-ST-9823 |
| Pressure range | 0 up to 100 MPa |
| Media | Water, oil or air |
| Volume change | Measured by the controller |
| PC connection | Logged and controlled by PC |
| Enterprise level | Commercial testing, maximum 1 MPa |
| Standard level | Medium-pressure commercial testing up to 4 MPa, undergraduate teaching and research |
| Advanced level | Highest accuracy in pressure and volume in the range |
Where pressure volume controllers are used
- Cell pressure and back pressure control in triaxial tests
- Volume change measurement during saturation and consolidation stages
- Permeability tests that need a controlled pressure and flow
Scope of supply and ordering
Specify the controller level and the pressure medium; each controller is quoted with its PC interface as listed. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What pressure range do the controllers cover?
Across the range, pressure can be applied from 0 up to 100 MPa using water, oil or air.
How do the Enterprise and Standard levels differ?
The Enterprise level is for commercial testing up to 1 MPa; the Standard level reaches 4 MPa and suits commercial testing, undergraduate teaching and research.
Can the controllers be run from a computer?
Yes. Pressure and volume change can be logged and controlled by PC.
