Laboratory Vane Shear Apparatus, Motorised
Product Code : JA-ST-9814

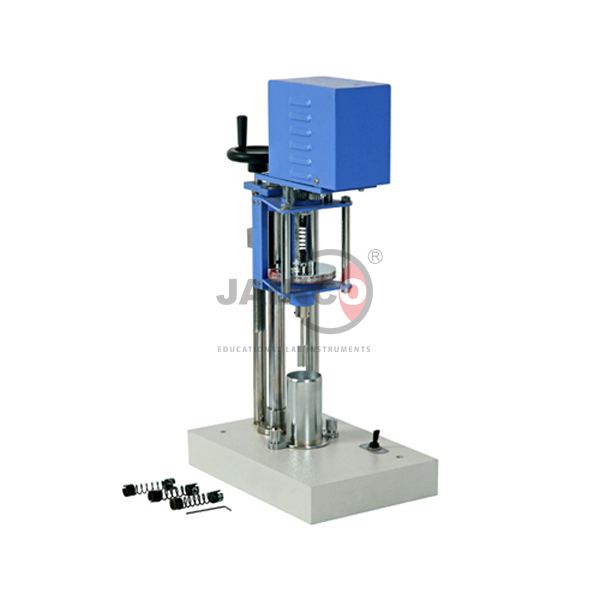

The Laboratory Vane Shear Apparatus, Motorised (SKU JA-ST-9814) measures the shear strength of soft cohesive soil specimens in the laboratory. The vane is lowered into the specimen by a lead screw and drive wheel, and an electric motor turns the upper end of a calibrated torsion spring at 0.1° per second. A resettable pointer shows the angle on a dial graduated in degrees, and the dial reading multiplied by the spring factor gives the torque.
Specifications
Operating details of the motorised vane shear apparatus:
| Product | Laboratory Vane Shear Apparatus, Motorised |
| SKU | JA-ST-9814 |
| Test | Laboratory vane shear strength of soil specimens |
| Height adjustment | Lead screw rotated by a drive wheel, to lower the vane into the specimen |
| Drive | Electric motor turning the upper end of a calibrated torsion spring |
| Rate of rotation | 0.1° per second |
| Reading | Resettable pointer on a dial graduated in degrees |
| Torque | Dial reading multiplied by the spring factor |
Uses of the laboratory vane shear apparatus
- Shear strength of soft clay specimens extruded from sampling tubes
- Remoulded strength and sensitivity checks on cohesive soils
- Soil mechanics practicals that need a steady rate of rotation
Scope of supply and ordering
The listing covers the motorised vane shear apparatus; state whether spare vanes or additional torsion springs are needed. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
At what rate does the vane rotate?
The motor turns the upper end of the calibrated torsion spring to give a rotation of 0.1° per second.
How is the torque worked out?
The resettable pointer shows the angle on the dial graduated in degrees; multiplying that reading by the spring factor gives the torque.
How is the vane lowered into the specimen?
The motor unit is adjusted in height by a lead screw rotated by a drive wheel.
