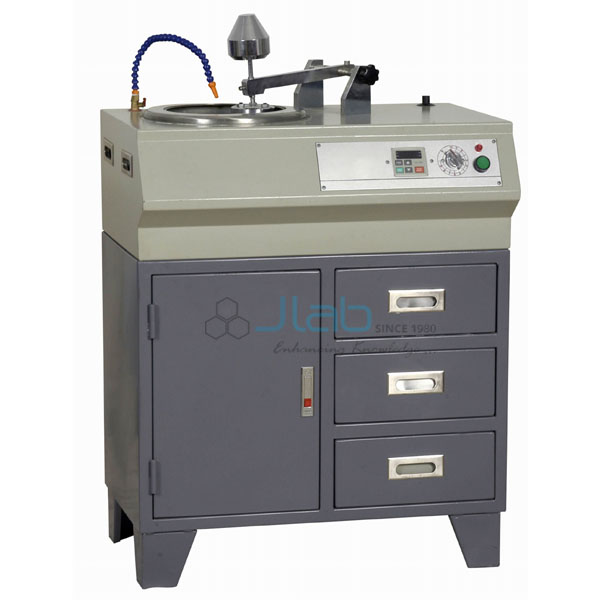

Speed Regulated Polishing Machine
Product Code : JA-ME-7366
The Speed Regulated Polishing Machine (SKU JA-ME-7366), supplied by JaincoLab, prepares metallographic samples through pre-grinding, grinding and pre-polishing on a 230 mm disc. Disc speed from 100 to 1000 r/min is regulated by a microcomputer chip and shown on a digital display, and an elastic grinding device holds the specimens. This speed regulated polishing machine can time each step automatically or be run manually.
Specifications
The speed regulated polishing machine is specified by a 230 mm disc, stepless speed of 100 to 1000 r/min with a four-speed option, 400 W brushless DC motors and a grinding head speed of 20 to 120 r/min, with the values in the table.
| Product | Speed Regulated Polishing Machine |
| SKU | JA-ME-7366 |
| Disc diameter | 230 mm; abrasive paper 230 mm |
| Disc speed | 100 to 1000 r/min stepless, or four speeds 250, 500, 750, 1000 r/min |
| Main motor | DC brushless, 220 V, 400 W |
| Grinding head motor | DC brushless deceleration motor, 220 V, 400 W |
| Grinding head speed | 20 to 120 r/min, stepless |
| Cylinder pressure | Adjustable; 0.2 to 0.3 MPa suggested |
| Net weight | 50 kg |
| Dimensions | 420 x 623 x 645 mm (including automatic grinding head) |
| Control | Microcomputer speed regulation with digital display; automatic or manual timing |
Applications of the speed regulated polishing machine
The machine is used where the grinding and polishing speed must be matched to the material and step, such as slower speeds for soft non-ferrous alloys and higher speeds for hardened steels.
- Pre-grinding and pre-polishing of metallographic samples
- Engineering college and research metallography labs
- Quality-control labs in steel and foundry plants
- Timed, repeatable preparation steps
Scope of supply and ordering
The listing covers the Speed Regulated Polishing Machine with grinding head and digital controller. Compressed air for the cylinder is provided by the user. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Orders for engineering college, polytechnic and industrial metallography laboratories, including tender orders, are supplied.
Frequently asked questions
How is the speed controlled?
By a microcomputer chip, from 100 to 1000 r/min stepless, shown on a digital display; four fixed speeds are also listed.
Can it time the steps?
Yes. It works in automatic or manual mode for timing the preparation steps.
What is the disc size?
230 mm, with 230 mm abrasive paper.
Related products
- Polishing Mach Machine
- Semi Automatic Polishing Machine
- Single Disc Polishing Machine With Controller
- Polishing Consumables
Browse the full metallurgical equipment range from JaincoLab for manual and automatic polishers.
Request a quote
To receive a quotation for the Speed Regulated Polishing Machine, send the quantity, the variant you need and the delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-ME-7366. Buying under a laboratory tender? Use our tenders page.
