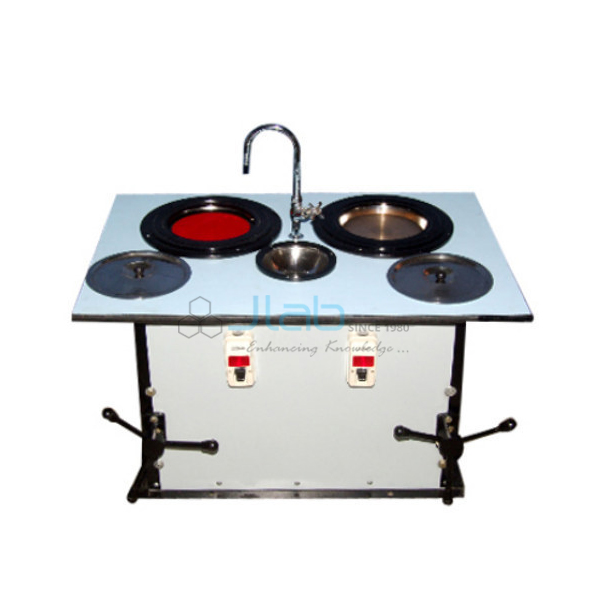

Double Disc Polishing Machine (Floor Model)
Product Code : JA-ME-7362
The Double Disc Polishing Machine (Floor Model) (SKU JA-ME-7362) polishes metallographic specimens after grinding, leaving a smooth surface on which the microstructure can be observed and measured under the microscope. Two 8 inch discs with a quick-change design let different emery grits or polishing cloths be used in sequence. This double disc metallographic polisher is driven by a 1/2 HP high-torque DC motor with thyristor speed control and a digital speed indicator from 50 to 1200 rpm.
Specifications
The double disc metallographic polisher is specified by two 8 inch discs (10 inch optional), a 1/2 HP high-torque DC motor, thyristor-controlled continuously variable speed and a digital speed indicator reading 50 to 1200 rpm, in a fully moulded FRP body.
| Product | Double Disc Polishing Machine (Floor Model) |
| SKU | JA-ME-7362 |
| Discs | Two, 8 in diameter standard; 10 in option; quick-change design |
| Motor | 1/2 HP high-torque DC motor |
| Speed control | Thyristor controlled, continuously variable |
| Speed indicator | Digital, 50 to 1200 rpm |
| Body | Fully moulded FRP with easy disc change |
| Discs usable | Many discs can be used with different grits or cloths |
Applications of the double disc metallographic polisher
The polisher is used for the final stages of specimen preparation, with one disc carrying a finer paper or cloth than the other so that a specimen moves from grinding to polishing without changing discs.
- Metallography practicals in engineering colleges and polytechnics
- Preparing steel, cast iron and non-ferrous specimens for microscopy
- Quality-control labs in foundries and heat-treatment shops
- Two students or two grades working at the same time
Scope of supply and ordering
The listing covers the Double Disc Polishing Machine with two 8 inch discs; 10 inch discs are an option. Polishing cloths and papers are ordered separately. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Orders for engineering college, polytechnic and industrial metallography laboratories, including tender orders, are supplied.
Frequently asked questions
What speed range does it offer?
Continuously variable speed with a digital indicator reading 50 to 1200 rpm, controlled by a thyristor controller.
Are larger discs available?
Yes. The standard disc is 8 inch; a 10 inch disc option is listed.
Is it a table-top or floor model?
The product is named Floor Model, while the listing describes a table-top design; the configuration is confirmed on the quotation.
Related products
- Single Disc Polishing Machine With Controller
- Disc Polishing Machine
- Semi Automatic Polishing Machine
- Polishing Consumables
Browse the full metallurgical equipment range from JaincoLab for single, double and automatic polishers.
Request a quote
To receive a quotation for the Double Disc Polishing Machine, send the quantity, the variant you need and the delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-ME-7362. Buying under a laboratory tender? Use our tenders page.
