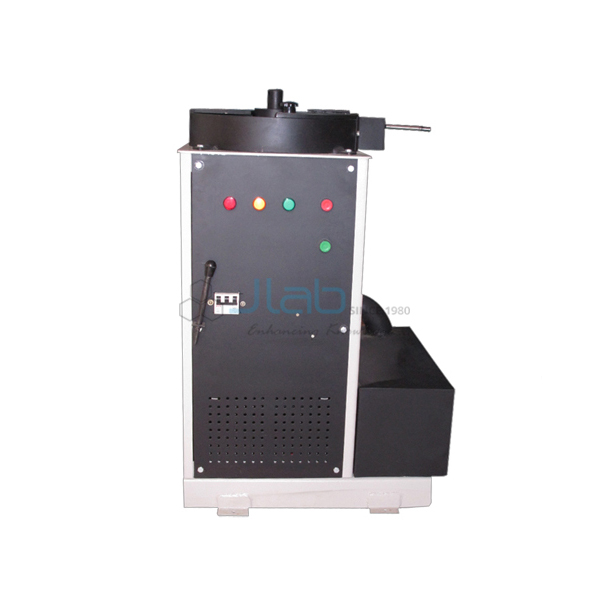

Spectro Sample Polisher
Product Code : JA-ME-7358
The Spectro Sample Polisher (SKU JA-ME-7358) grinds a flat, clean face on metal samples before they are analysed on a spectrometer. A 350 mm abrasive (alundum) disc is held evenly on a steel disc plate by air suction and locked in place, and the same suction line collects the dust and cools the disc. This spectrometer sample polisher runs on a 2 HP, 3-phase, 415 V motor with a push-button DOL starter and suits foundries and metallurgy laboratories.
Specifications
The spectrometer sample polisher is specified by a 350 mm abrasive disc, a 2 HP (or higher) 3-phase 415 V disc motor, a 1 HP suction motor and the construction details in the table. Disc grade and spare discs are confirmed on the quotation.
| Product | Spectro Sample Polisher |
| SKU | JA-ME-7358 |
| Abrasive disc | 350 mm dia., alundum |
| Disc motor | 2 HP or higher, approx. 2800 rpm, 3 phase, 50 Hz, 415 V AC |
| Suction motor | 1 HP minimum, 1440 rpm, 415 V AC, 50 Hz |
| Disc plate | Steel, air-gripping arrangement with locking system |
| Disc housing | Cast iron, machined; dust pipeline at the back |
| Disc cover | Covers the disc plate over 180 degrees |
| Starter | Push-button DOL starter with overload protection |
| Stand | Fabricated and machined machine stand with motor starters |
| Finish | Antifungal, rust-proof paint |
| Documentation | Operation and maintenance manual |
Applications of the spectrometer sample polisher
The polisher is used to prepare the flat, freshly ground surface that a spark spectrometer needs on each metal sample, so that the analysis reflects the metal and not surface scale or contamination.
- Sample preparation for spectrometer analysis in foundries and steel plants
- Metallurgy laboratories testing incoming metal
- Engineering college and research labs with a spectrometer
- Rapid grinding of cast and wrought samples with dust collection
Scope of supply and ordering
The listing covers the Spectro Sample Polisher with disc motor, air-gripping unit, suction motor, disc housing and cover, starters, stand and an operation and maintenance manual. Abrasive discs are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Orders for engineering college, polytechnic and industrial metallography laboratories, including tender orders, are supplied.
Frequently asked questions
What disc size does it use?
A 350 mm diameter abrasive (alundum) disc held on the disc plate by air suction.
What power supply is needed?
A 3-phase, 50 Hz, 415 V AC supply for the 2 HP disc motor and the 1 HP suction motor.
How is dust handled?
The suction pipeline at the back of the disc housing collects the dust and also cools and grips the disc.
Related products
Browse the full metallurgical equipment range from JaincoLab for mounting, grinding, polishing and hardness testing.
Request a quote
To receive a quotation for the Spectro Sample Polisher, send the quantity, the variant you need and the delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-ME-7358. Buying under a laboratory tender? Use our tenders page.
