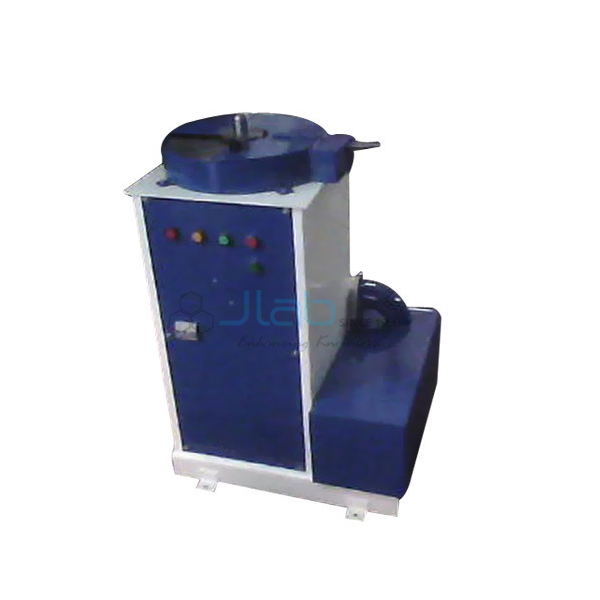

Spectro Double Polisher Machine
Product Code : JA-ME-7360
The Spectro Double Polisher Machine (SKU JA-ME-7360) prepares metal samples for spectrometer analysis on air-gripped alundum discs, with a locking system that keeps each disc in position. The outer body is thick mild steel with powder-coated rust-proof paint, and each disc plate is covered over 180 degrees. This double spectro polisher runs on a 2 HP, 2800 rpm, 440/460 V 3-phase main motor with push-button controls, and suits busy foundry and metallurgy laboratories.
Specifications
The double spectro polisher is specified by its 2 HP, 2800 rpm main motor on a 440/460 V 3-phase supply, air-gripped alundum discs and the construction listed below. Disc size and gripping motor rating are confirmed on the quotation.
| Product | Spectro Double Polisher Machine |
| SKU | JA-ME-7360 |
| Main motor | 2 HP, 2800 rpm, 440/460 V, 3 phase AC |
| Disc holding | Steel disc plate with air gripping arrangement and locking system for alundum disc |
| Disc cover | Covers the disc plate over 180 degrees |
| Controls | L and T make push buttons for main and gripping motors (as listed) |
| Body | Thick MS, powder-coated rust-proof paint |
| Disc size and gripping motor | Confirmed on the quotation |
Applications of the double spectro polisher
The machine is used where many spectrometer samples are prepared each shift, as the two polishing stations let two samples be ground at the same time or one disc be kept for a different grade.
- Spectrometer sample preparation in foundries and steel plants
- Metallurgy labs handling many samples per shift
- Engineering college and research labs with a spark spectrometer
- Grinding cast and wrought metal samples
Scope of supply and ordering
The listing covers the Spectro Double Polisher Machine with main motor, air-gripping arrangement, disc covers and push-button controls. Abrasive discs are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Orders for engineering college, polytechnic and industrial metallography laboratories, including tender orders, are supplied.
Frequently asked questions
What motor does it use?
A 2 HP, 2800 rpm main motor on a 440/460 V, 3-phase AC supply.
How are the discs held?
By an air gripping arrangement on a steel disc plate, with a locking system to keep the alundum disc in position.
What disc size is used?
Disc size is confirmed on the quotation together with the number of spare discs.
