Single Phase Fully Controlled Bridge Converter
Product Code : JA-PET-1427

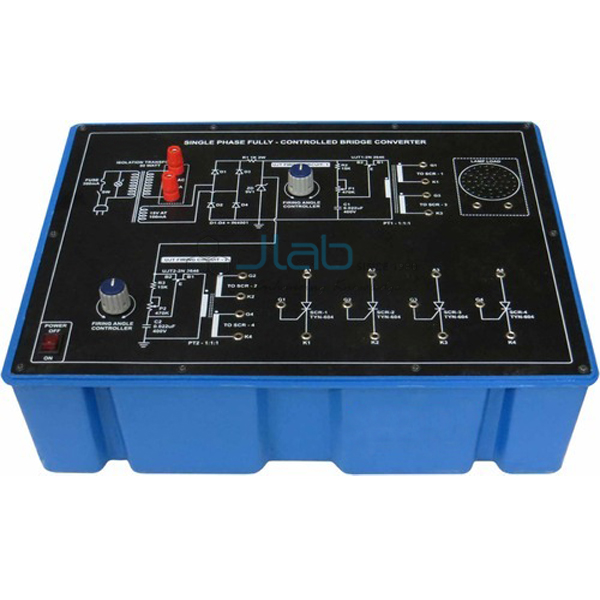

The single phase fully controlled bridge converter trainer lets students build and study a four-SCR bridge supplied from a 230 V AC isolated transformer rated at 50 W. Two UJTs with 1:1:1 pulse transformers generate the firing pulses, two potentiometers set the firing angle, and a 40 W, 230 V AC bulb is fitted on the board (SKU JA-PET-1427).
Specifications
Components and ratings of the bridge converter board:
| Product | Single Phase Fully Controlled Bridge Converter |
| SKU | JA-PET-1427 |
| Isolated transformer | 230 V AC, 50 W |
| Firing supply | 9 V DC at 100 mA, zener regulated |
| UJTs | Two |
| SCRs | Four |
| Pulse transformers | Two, 1:1:1 |
| Firing angle control | Two potentiometers |
| Bulb | 40 W, 230 V AC |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable spring-loaded plugs, 0.5 m |
| Weight | 6 kg approx. |
| Dimensions | W 300 x H 140 x D 200 mm |
| Other apparatus required | Dual trace CRO 20 MHz (unearthed), or with an isolation transformer for unearthing |
Using the fully controlled bridge converter board
The board is used for:
- Building and studying a single phase fully controlled bridge with four SCRs
- Changing the UJT firing angle with the two potentiometers and observing the output on a dual trace oscilloscope
Scope of supply and ordering
The listing covers the bridge converter board, including its isolated transformer and bulb, with patch cords, supplied by JaincoLab. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
How many SCRs form the bridge?
Four SCRs, fired through two 1:1:1 pulse transformers driven by two UJTs.
What transformer is built in?
A 230 V AC isolated transformer rated at 50 W.
What oscilloscope is recommended?
A dual trace 20 MHz CRO, unearthed, or an earthed CRO used with an isolation transformer for unearthing.
