Trigger a SCR by using a LDR
Product Code : JA-PET-1426

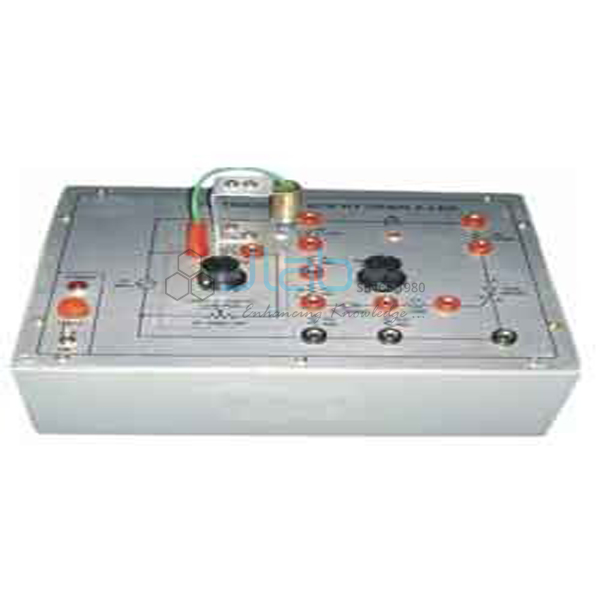

This board demonstrates an LDR triggered SCR circuit, in which a light-dependent resistor mounted on the panel fires the SCR. A 6 V AC, 2 A supply is internally connected to the SCR, and two potentiometers set the light intensity and the trigger sensitivity. It is a single-experiment power electronics trainer for science and engineering practicals (SKU JA-PET-1426).
Specifications
The LDR triggering board is listed with:
| Product | Trigger a SCR by using a LDR |
| SKU | JA-PET-1426 |
| Object | To trigger an SCR by using an LDR |
| Supply to SCR | 6 V AC at 2 A, internally connected |
| Sensor | LDR mounted on the panel |
| Controls | Two potentiometers, for intensity and sensitivity |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Connections | Terminals and sockets on the panel for connections and waveform observation |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Instruments listed | Digital multimeter (3¾ digit) and 20 MHz CRO |
What the LDR triggering board shows
Work on this board covers:
- Firing an SCR from a change in the light falling on the LDR
- Setting the trigger point with the intensity and sensitivity potentiometers
- Observing the circuit waveforms on an oscilloscope through the panel sockets
Scope of supply and ordering
The listing covers the LDR-triggered SCR board with its operating instructions, supplied by JaincoLab; the multimeter and oscilloscope are separate instruments. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What does the LDR do on this board?
It is the light sensor that triggers the SCR, and it is mounted on the panel.
What supply does the SCR circuit use?
A 6 V AC, 2 A supply that is internally connected; the board itself runs on 230 V ±10%, 50 Hz mains.
What do the two potentiometers adjust?
One sets the intensity and the other the sensitivity of the triggering.
