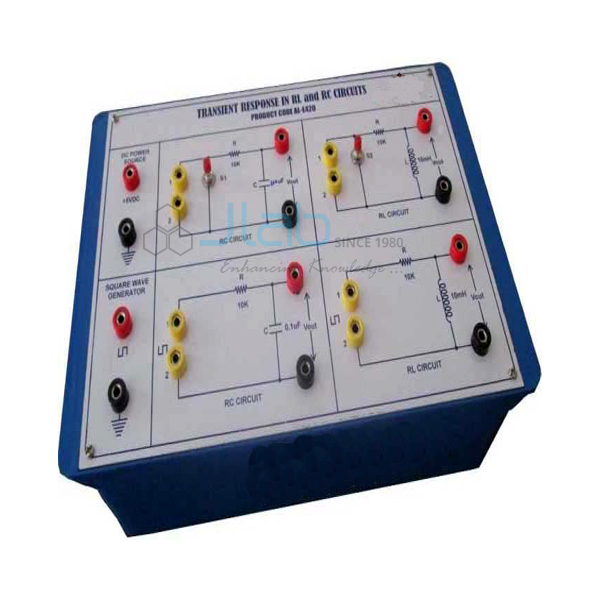

RC Circuit Transient Response
Product Code : JA-VOVLACOS-1111
The RC Circuit Transient Response apparatus (SKU JA-VOVLACOS-1111) is used to study an RC circuit working as a low pass filter and as a high pass filter. Both circuits are printed on the panel, with three resistances and three capacitors to change the RC values, and all connections are brought out to terminals. The input signal comes from an audio frequency function generator; the listing names type TE-93.
Specifications
The listing gives these details:
| Product | RC Circuit Transient Response |
| SKU | JA-VOVLACOS-1111 |
| Panel | Low pass and high pass filter circuits printed |
| Resistances | Three |
| Capacitors | Three |
| Connections | Terminals |
| Signal source | AF function generator, type TE-93 (named in the listing) |
Scope of supply and ordering
Whether the function generator is included is confirmed on the quotation, with quantities and packing.
Frequently asked questions
What does the RC Circuit Transient Response apparatus study?
An RC circuit used as a low pass filter and as a high pass filter.
How many R and C values are provided?
Three resistances and three capacitors.
