Smart Mill 500
Product Code : JA-CTM-9040

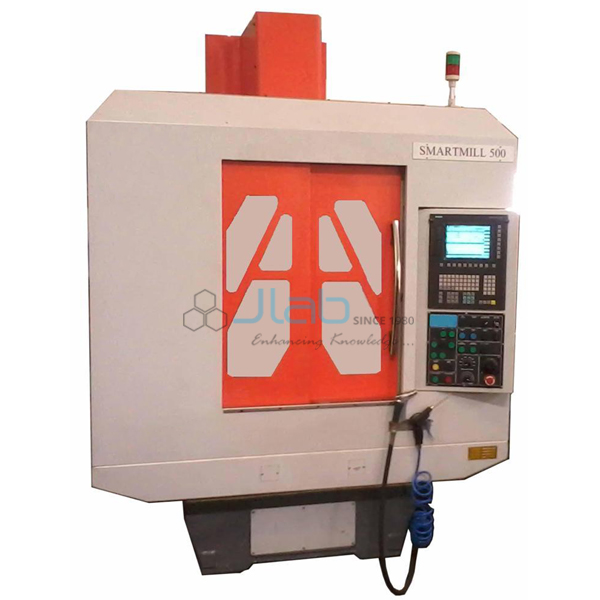

The Smart Mill 500 (SKU JA-CTM-9040) is a compact vertical machining centre (VMC) with a box-structured base and column for rigid, steady milling of accurate components. It carries an 8,000 rpm spindle with coolant through spindle, a 20-tool magazine with a double gripper automatic tool changer and a side chip conveyor with built-in coolant system. Engineering colleges and training centres use a compact VMC to teach production machining on industrial controls. It is supplied by JaincoLab with standard and optional accessories.
Specifications
The published data for this model lists its key features rather than axis travels: an 8,000 rpm spindle with CTS, a 20-tool double gripper ATC, rigid tapping and a screw-type chip conveyor; travels, table size and spindle power are confirmed on the quotation.
| Product | Smart Mill 500 |
| SKU | JA-CTM-9040 |
| Machine type | Vertical machining centre (VMC) |
| Structure | Box-structured base and column |
| Spindle | 8,000 rpm with coolant through spindle (CTS) |
| Tool magazine | 20 tools, double gripper automatic tool changer |
| Chip handling | Side screw-type chip conveyor with built-in coolant system |
| Standard accessories | Coolant tank and pump with chip tray; work light; pilot light; screw-type chip conveyor; levelling bolts and pads; rigid tapping; operating manual; programming manual |
| Optional accessories | Spindle through coolant; 4th axis CNC rotary table; 10,000 rpm spindle; 7/9 kW spindle motor; voltage stabiliser or isolation transformer; tooling and fixtures to customer need |
Applications of the Smart Mill 500 vertical machining centre
A compact VMC brings industrial machining-centre practice into a college workshop, with automatic tool change and coolant through spindle.
- Advanced CNC milling and machining-centre practicals for engineering students
- Training on automatic tool change, rigid tapping and multi-tool programs
- Production of milled components in institute workshops
- 4th axis machining with the optional CNC rotary table
Scope of supply and ordering
The listing covers the Smart Mill 500 VMC with its standard accessories: coolant tank and pump with chip tray, work light, pilot light, screw-type chip conveyor, levelling bolts and pads, rigid tapping, operating manual and programming manual. Optional items are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the options selected and number of machines and the delivery destination. Single machines for institute workshops and orders for training centres and tenders are supplied.
Frequently asked questions
How many tools does the magazine hold?
Twenty, with a double gripper automatic tool changer.
What spindle speed is standard?
8,000 rpm with coolant through spindle; a 10,000 rpm spindle and a 7/9 kW spindle motor are optional.
Is a 4th axis available?
Yes, a 4th axis CNC rotary table is offered as an option.
Related products
Browse the full CNC trainer machine range for lathes, mills, controllers and automation trainers from JaincoLab.
Request a quote
To order the Smart Mill 500, send the options needed, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CTM-9040. For tender or project supply, see our tenders page.
