Power and Differential Amplifier Trainer
Product Code : JA-AET-1476

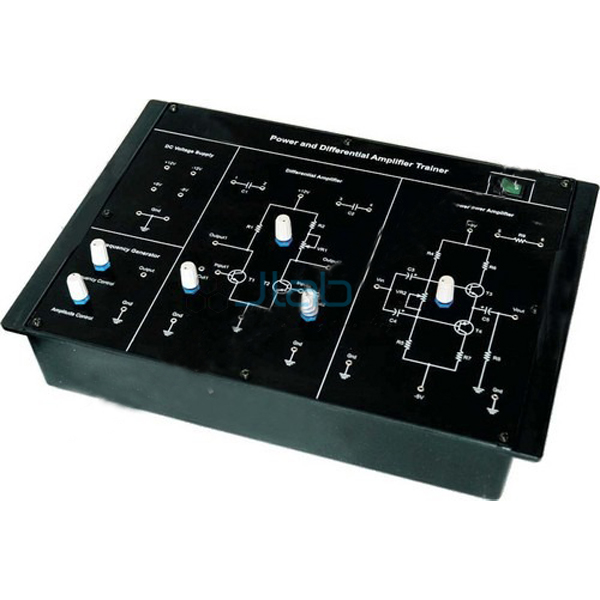

The power and differential amplifier trainer is used to study the working principles of a differential amplifier and a class B push-pull power amplifier. It has a built-in DC supply (+12 V, -12 V, +5 V and -5 V), a 0-1 V variable DC supply and a sine wave generator covering 800 Hz to 8 kHz at 0-5 Vpp (SKU JA-AET-1476).
Specifications
The trainer is listed with:
| Product | Power and Differential Amplifier Trainer |
| SKU | JA-AET-1476 |
| DC supplies | +12 V, -12 V, +5 V, -5 V |
| Variable DC supply | 0 to 1 V |
| Sine wave generator | 800 Hz to 8 kHz, 0 to 5 Vpp |
| Mains | 230 V ±10%, 50 Hz |
| Fuse | 350 mA, slow blow |
Scope of learning
The trainer covers:
- Working principle of the differential amplifier
- Working principle of the class B push-pull amplifier
Scope of supply and ordering
The listing covers the power and differential amplifier trainer with its built-in supplies and sine wave generator, supplied by JaincoLab. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
Which amplifiers does the trainer cover?
A differential amplifier and a class B push-pull power amplifier.
What signal source is built in?
A sine wave generator from 800 Hz to 8 kHz with 0 to 5 Vpp amplitude.
Which DC supplies are available?
Fixed +12 V, -12 V, +5 V and -5 V supplies and a variable 0 to 1 V DC supply.
