Push Pull Amplifier
Product Code : JA-AET-1451

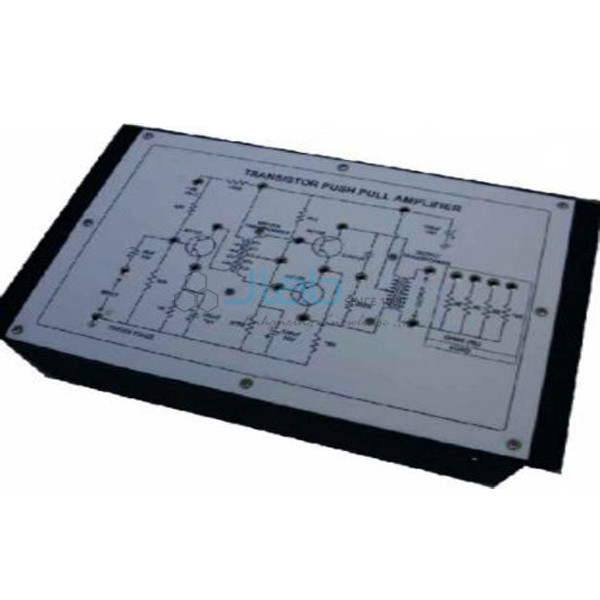

The push pull amplifier trainer is a class B transistor push-pull amplifier board for audio-frequency practicals. Students measure output power, plot the frequency response and measure distortion, using three PNP transistors, driver and output transformers, a -9 V DC, 50 mA regulated supply and four output loads selected by a band switch (SKU JA-AET-1451).
Specifications
The push-pull board carries these parts and ratings:
| Product | Push Pull Amplifier |
| SKU | JA-AET-1451 |
| Amplifier | Class B transistor push-pull, audio frequency |
| DC supply | -9 V DC at 50 mA, IC regulated, internally connected |
| Transformers | Driver transformer and output transformer |
| Output loads | Four, selected by a band switch |
| Transistors | Three PNP |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Other apparatus required | Decade audio frequency generator; AC millivoltmeter; output power meter |
Push pull amplifier experiments
The listed studies are:
- Output power measurement
- Frequency response characteristics
- Distortion measurement
Scope of supply and ordering
The listing covers the push-pull amplifier board with patch cords and operating instructions, supplied by JaincoLab. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
What class of amplifier is on the board?
A class B transistor push-pull amplifier working at audio frequencies.
How many load values can be selected?
Four output loads, chosen with a band switch.
Which instruments are needed?
A decade audio frequency generator, an AC millivoltmeter and an output power meter.
Related products
Other products in this group are in the analog electronics trainer range.
Request a quote
Request a quotation for the Push Pull Amplifier (SKU JA-AET-1451) through the JaincoLab contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
