Pitot Tube Demonstrator
Product Code : JA-FMAHLE-9962

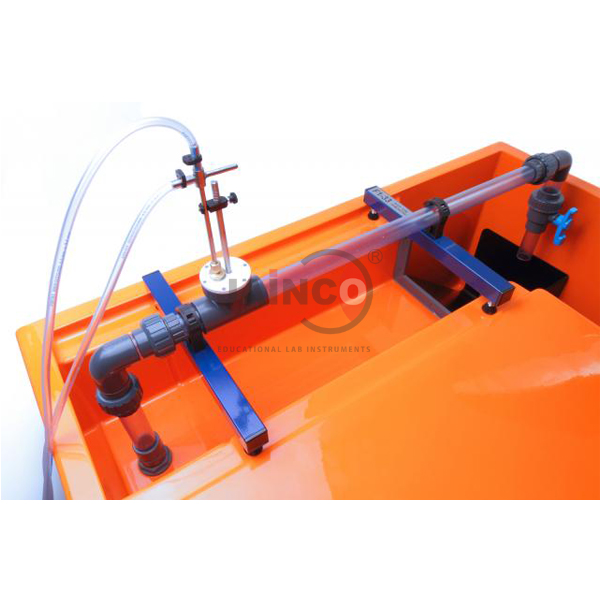

The Pitot Tube Demonstrator (SKU JA-FMAHLE-9962) measures how the velocity of water varies across a pipe. A Pitot tube is moved across the pipe section, its tip position read on a scale, and the differential head is shown on a pressurised water manometer. JaincoLab supplies this Pitot tube demonstrator to engineering colleges and polytechnics for fluid mechanics practicals on velocity measurement.
Specifications
The unit comprises a Pitot tube with a scale giving the tip position relative to the pipe wall, a pressurised water manometer with a 500 mm scale and a set of connecting tubes, in an overall size of about 1.0 x 0.55 x 0.23 m; pipe size and water supply are confirmed on the quotation.
| Product | Pitot Tube Demonstrator |
| SKU | JA-FMAHLE-9962 |
| Pitot tube | Traversable across the pipe section, with scale for the tip position |
| Manometer | Pressurised water manometer, 500 mm scale length, measures the differential head |
| Connections | Set of connecting tubes |
| Approx. dimensions | 1.0 x 0.55 x 0.23 m |
| Pipe size and water supply | Confirmed on the quotation |
Applications of the Pitot tube demonstrator
The Pitot tube demonstrator lets students measure the dynamic head at points across a pipe and convert it to velocity, so they can plot the velocity profile and find the mean velocity, a standard practical on flow measurement in fluid mechanics courses.
- Measuring the dynamic head profile across a pipe
- Calculating point velocities from the Pitot tube readings
- Plotting the velocity distribution and estimating mean velocity
- Fluid mechanics practicals in civil and mechanical engineering courses
Scope of supply and ordering
The listing covers the Pitot tube with position scale, pressurised water manometer and connecting tubes. The water supply and pipe arrangement are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The demonstrator is supplied by JaincoLab singly or with other flow measurement units for colleges and tender orders.
Frequently asked questions
What does the manometer measure?
The differential head across the Pitot tube, on a pressurised water manometer with a 500 mm scale.
How is the tip position read?
On a scale that shows the position of the measuring tip relative to the pipe wall.
What is the overall size?
About 1.0 x 0.55 x 0.23 m.
