Vortex Formation Apparatus
Product Code : JA-FMAHLE-9990

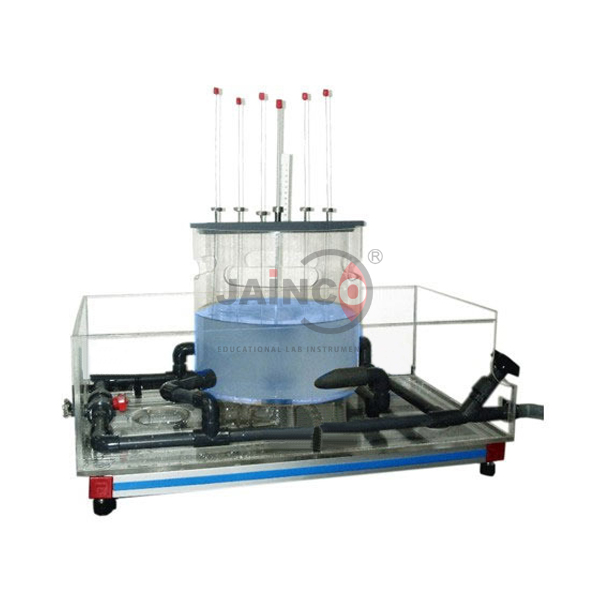

The Vortex Formation Apparatus (SKU JA-FMAHLE-9990), supplied by JaincoLab, generates free and forced vortices in a transparent tank so that their surface profiles can be seen and measured. Two tangential nozzles or a three-blade impeller produce a forced vortex, while two radial nozzles and four interchangeable drain inserts produce a free vortex. This free and forced vortex apparatus measures the water surface with horizontal and vertical point gauges and a movable measuring tube.
Specifications
The vortex apparatus is specified by a transparent tank of 250 mm diameter and 190 mm height, four drain inserts of 8, 12, 16 and 24 mm, a 3-blade impeller and point gauges with 6 and 2 movable rods, as tabled.
| Product | Vortex Formation Apparatus |
| SKU | JA-FMAHLE-9990 |
| Tank | Transparent; diameter 250 mm; height 190 mm |
| Forced vortex | Two tangential supply nozzles; impeller with 3 blades |
| Free vortex | Two radial supply nozzles; drain inserts |
| Drain inserts | 4; diameters 8, 12, 16 and 24 mm |
| Horizontal point gauge | 6 movable rods |
| Vertical point gauge | 2 movable rods |
| Measuring tube | Movable, diameter 4 mm; horizontal 0 - 90 mm, vertical 70 - 190 mm |
Experiments with the vortex apparatus
The apparatus is used to produce both kinds of vortex, measure their water-surface profiles and compare them with the theoretical profiles of free and forced vortices.
- Surface profile of a forced vortex
- Surface profile of a free vortex
- Effect of drain diameter on the free vortex
- Comparison of measured and theoretical profiles
Scope of supply and ordering
The listing covers the Vortex Formation Apparatus with tank, nozzles, impeller, drain inserts, point gauges and measuring tube. The water supply or hydraulic bench it runs from is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single trainers and complete fluid mechanics laboratories for engineering colleges, polytechnics and TVET institutes, including tender orders, are supplied.
Frequently asked questions
How are the two vortex types produced?
A forced vortex with tangential nozzles or the impeller; a free vortex with radial nozzles and a drain insert.
What drain sizes are included?
Four inserts of 8, 12, 16 and 24 mm.
How is the surface measured?
With horizontal and vertical point gauges and a movable measuring tube.
