Discharge Through Venturimeter and Orificemeter
Product Code : JA-FMAHLE-9920

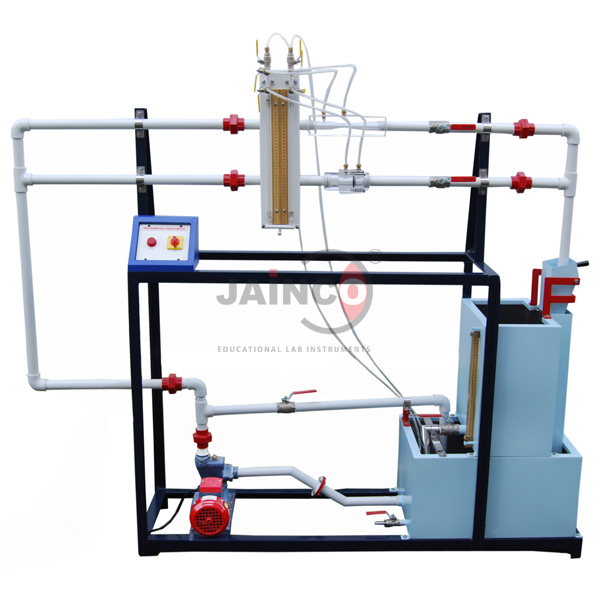

The Discharge Through Venturimeter and Orificemeter apparatus (SKU JA-FMAHLE-9920) compares two common flow meters on one recirculating bench. JaincoLab manufactures this venturimeter and orificemeter apparatus for fluid mechanics practicals in civil and mechanical engineering colleges and polytechnics, where students read the pressure difference across each meter on a differential manometer, measure the actual flow with a tank and stopwatch and calculate the coefficient of discharge.
Specifications
Two pipelines leave a common manifold, one carrying a venturimeter and the other an orifice meter, connected in parallel and selected by downstream valves; their pressure tappings lead to a differential manometer, and a sump tank, centrifugal pump, flow control and bypass valves complete the recirculating circuit.
| Product | Discharge Through Venturimeter and Orificemeter |
| SKU | JA-FMAHLE-9920 |
| Pipelines | Two pipelines from a common manifold, connected in parallel |
| Flow meters | Venturimeter in one line, orifice meter in the other |
| Selection | Downstream valves put either meter into operation |
| Pressure measurement | Differential manometer connected to the pressure tappings |
| Water circuit | Self-contained recirculating unit with sump tank and centrifugal pump |
| Flow control | Flow control valve and bypass valve |
| Flow measurement | Measuring tank and stopwatch |
| Electric supply | Single phase, 220 V AC, 50 Hz, 5-15 A combined socket with earth (earth voltage below 5 V) |
| Floor area | 1.5 x 0.75 m, with floor drain |
Applications of the venturimeter and orificemeter apparatus
The venturimeter and orificemeter apparatus is used to calibrate both meters against a measured flow and to compare how they behave as flow meters, which makes it a core flow measurement practical in fluid mechanics and hydraulics laboratories.
- Determining the coefficient of discharge of a venturimeter
- Determining the coefficient of discharge of an orifice meter
- Demonstrating the use of the venturimeter and orifice meter as flow meters
- Fluid mechanics practicals in B.E./B.Tech civil and mechanical engineering and diploma courses
Scope of supply and ordering
The listing covers the manifold with two pipelines, venturimeter, orifice meter, selector valves, differential manometer, sump tank, centrifugal pump, flow control and bypass valves and measuring tank. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. JaincoLab supplies single units and complete fluid mechanics laboratories for engineering colleges, polytechnics and tender orders.
Frequently asked questions
Can both meters be tested on one unit?
Yes. The venturimeter and orifice meter are in parallel pipelines and either one is put into operation with the downstream valves.
How is the pressure difference measured?
The pressure tappings of both meters are connected to a differential manometer.
What utilities are needed?
A single-phase 220 V AC, 50 Hz supply with an earthed 5-15 A socket, water for the initial fill, a floor drain and 1.5 x 0.75 m of floor area.
Related products
- Orifice and Mouthpiece Apparatus
- Discharge Over Notches
- Losses Due To Pipe Fittings
- Impact of Jet on Vanes
Orifice, notch, pipe loss and jet impact set-ups are listed in the JaincoLab fluid mechanics lab equipment range.
Request a quote
To order the Venturimeter and Orificemeter apparatus, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
