Orifice and Mouthpiece Apparatus
Product Code : JA-FMAHLE-9917

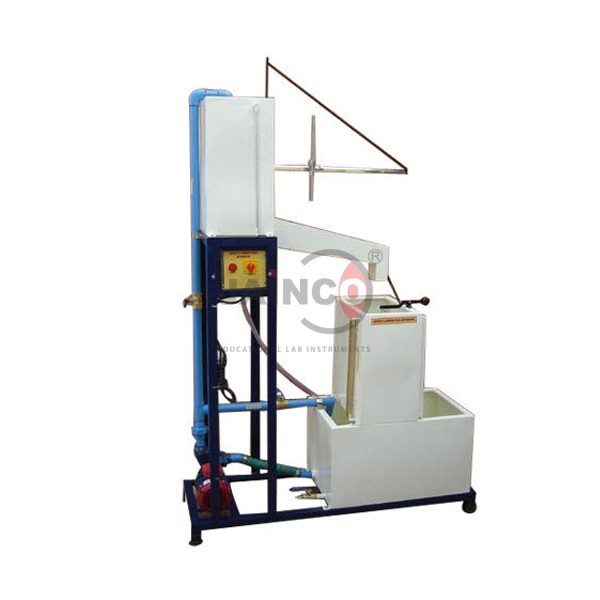

The Orifice and Mouthpiece Apparatus (SKU JA-FMAHLE-9917) is a self-contained hydraulics bench for measuring flow through small orifices and mouthpieces under a constant head. JaincoLab manufactures this orifice and mouthpiece apparatus for fluid mechanics practicals in civil and mechanical engineering colleges and polytechnics, where students calibrate each orifice or mouthpiece and determine its coefficient of discharge using the measuring tank, stopwatch and X-Y arrangement.
Specifications
Water is pumped by a self-priming monobloc centrifugal pump (30 LPM, 20 m head) from a 100 litre PVC sump to a 200 x 200 x 700 mm constant head tank fitted with the orifice or mouthpiece under test, and the discharge is collected in a 32 litre measuring tank.
| Product | Orifice and Mouthpiece Apparatus |
| SKU | JA-FMAHLE-9917 |
| Pump | Self-priming monobloc centrifugal; max. flow 30 LPM, max. head 20 m, 230 V AC |
| Sump tank | 100 litres, PVC |
| Piping | PVC piping with valves |
| Constant head tank | FRP, or MS lined with FRP; 200 (L) x 200 (W) x 700 (H) mm |
| Orifices | 6 mm and 8 mm diameter |
| Mouthpieces | Convergent and divergent |
| Jet measurement | X-Y arrangement |
| Measuring tank | 32 litres, PVC, with level indicator |
| Timing | Digital stopwatch |
| Frame | MS square tubes and sheets, welded and powder coated |
Applications of the orifice and mouthpiece apparatus
The orifice and mouthpiece apparatus is used to find how much the real discharge through a small opening differs from the theoretical value, by measuring flow under a constant head, and it is a standard flow measurement practical in fluid mechanics and hydraulics laboratories.
- Calibration of orifices and mouthpieces
- Determination of the coefficient of discharge
- Comparing flow through 6 mm and 8 mm orifices and convergent and divergent mouthpieces
- Fluid mechanics and hydraulics practicals for B.E./B.Tech civil and mechanical engineering and diploma courses
Scope of supply and ordering
The listing covers the complete bench: pump, sump tank, piping and valves, constant head tank, 6 mm and 8 mm orifices, convergent and divergent mouthpieces, X-Y arrangement, measuring tank with level indicator, digital stopwatch and powder-coated frame. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. JaincoLab supplies single benches and complete fluid mechanics laboratories for engineering colleges, polytechnics and tender orders.
Frequently asked questions
Which orifices and mouthpieces are included?
Orifices of 6 mm and 8 mm diameter and a convergent and a divergent mouthpiece.
Is the unit self-contained?
Yes. It has its own 100 litre sump tank, pump, constant head tank and 32 litre measuring tank; the pump runs on 230 V AC.
What is the pump rating?
A self-priming monobloc centrifugal pump with maximum flow 30 LPM and maximum head 20 m.
