Centrifugal Fan Demonstration Unit
Product Code : JA-FMAHLE-9967

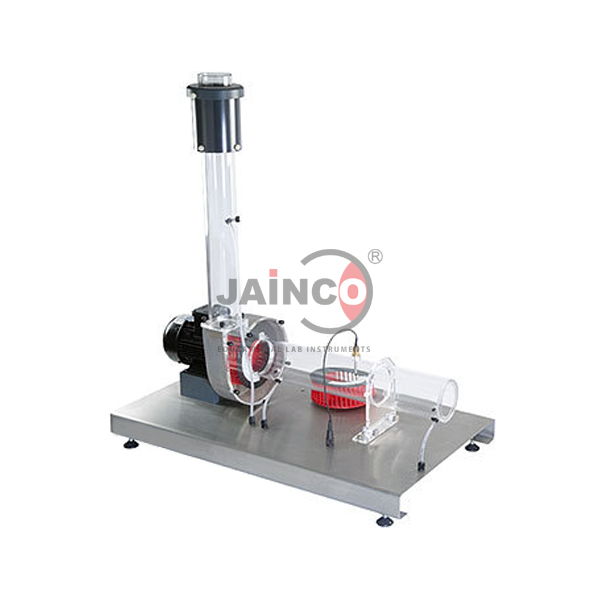

The Centrifugal Fan Demonstration Unit (SKU JA-FMAHLE-9967) is a small-scale fan set-up for measuring the performance of a centrifugal fan and comparing two impeller designs. The fan, inlet duct, outlet duct and adjustable aperture are mounted on a stainless steel base, with a transparent cover plate on the volute. JaincoLab supplies this centrifugal fan demonstration unit to engineering colleges and polytechnics for fluid mechanics and turbomachinery practicals.
Specifications
The listed ratings are a maximum flow of 70 l/s (typical), a maximum head of 0.7 kPa, a maximum fan speed of 3000 rpm and a 550 W motor; flow is measured through an orifice plate, and sensors record fan head pressure and air temperature for logging on a PC.
| Product | Centrifugal Fan Demonstration Unit |
| SKU | JA-FMAHLE-9967 |
| Max. flow rate | 70 l/s typical |
| Max. head | 0.7 kPa |
| Max. fan speed | 3000 rpm |
| Motor power rating | 550 W |
| Impellers | Two different, easily interchangeable |
| Volute | Transparent cover plate |
| Sensors | Fan head pressure, flow rate (via orifice plate), air temperature |
| Layout | Inlet duct, fan, outlet duct and adjustable aperture on a stainless steel base |
| Computer link | PC link (computer not supplied) via a USB interface console listed as an essential accessory; software with teaching instructions, data logging and graphs |
Experiments on the centrifugal fan demonstration unit
The centrifugal fan demonstration unit is used to measure constant-speed performance and efficiency, introduce the similarity laws used for scaling fans, and compare two impellers on the same casing in fluid mechanics and turbomachinery practicals.
- Measuring fan performance at constant speeds
- Plotting static and total pressure, rotor speed and shaft power against inlet flow
- Measuring fan efficiency and estimating impeller efficiency
- Introduction to the similarity laws for scale-up
- Comparing the two impellers and checking student calculations against computer results
Scope of supply and ordering
The listing covers the centrifugal fan unit with two impellers, ducts, adjustable aperture, orifice plate, sensors and software. The USB interface console is an essential accessory and, with the computer, is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The unit is supplied by JaincoLab singly or with the other fan, pump and turbine units for colleges and tender orders.
Frequently asked questions
What are the fan ratings?
Maximum flow 70 l/s (typical), maximum head 0.7 kPa and maximum speed 3000 rpm, with a 550 W motor.
How many impellers are supplied?
Two different impellers that are easily interchangeable.
Is the interface console included?
It is listed as an essential accessory and is confirmed on the quotation; the computer is not supplied.
